Grids · ECoG Series

ECoG 128-Channel Grid

128Sites
12µmThickness
3.04mmWidth
1,963µm²Site Area
Part no.E128-200-cl8-40
Contents

128-site ECoG grid, 50 µm sites

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance, on a short cable for a compact head end. Among the 55 grid designs in the design space it is mid-range: 128 sites (96th percentile), a 1.44 mm site-array span (13th percentile), 29 sites/mm² (93rd percentile) and a 3.43 mm³ neural interface (20th percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 1 of them microdrive-compatible. Polyimide 12 µm thick. 8 mm cable. Research use only.

Also known as

e128_200_8_40 · E128-200-8-40

ECoG 128-Channel GridSKU grd_cog--e128_200_cl8_40NetSuite 7767

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

11 specs

Channels128
Site layoutGrid
Site area1,963 µm²
Span1440 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm

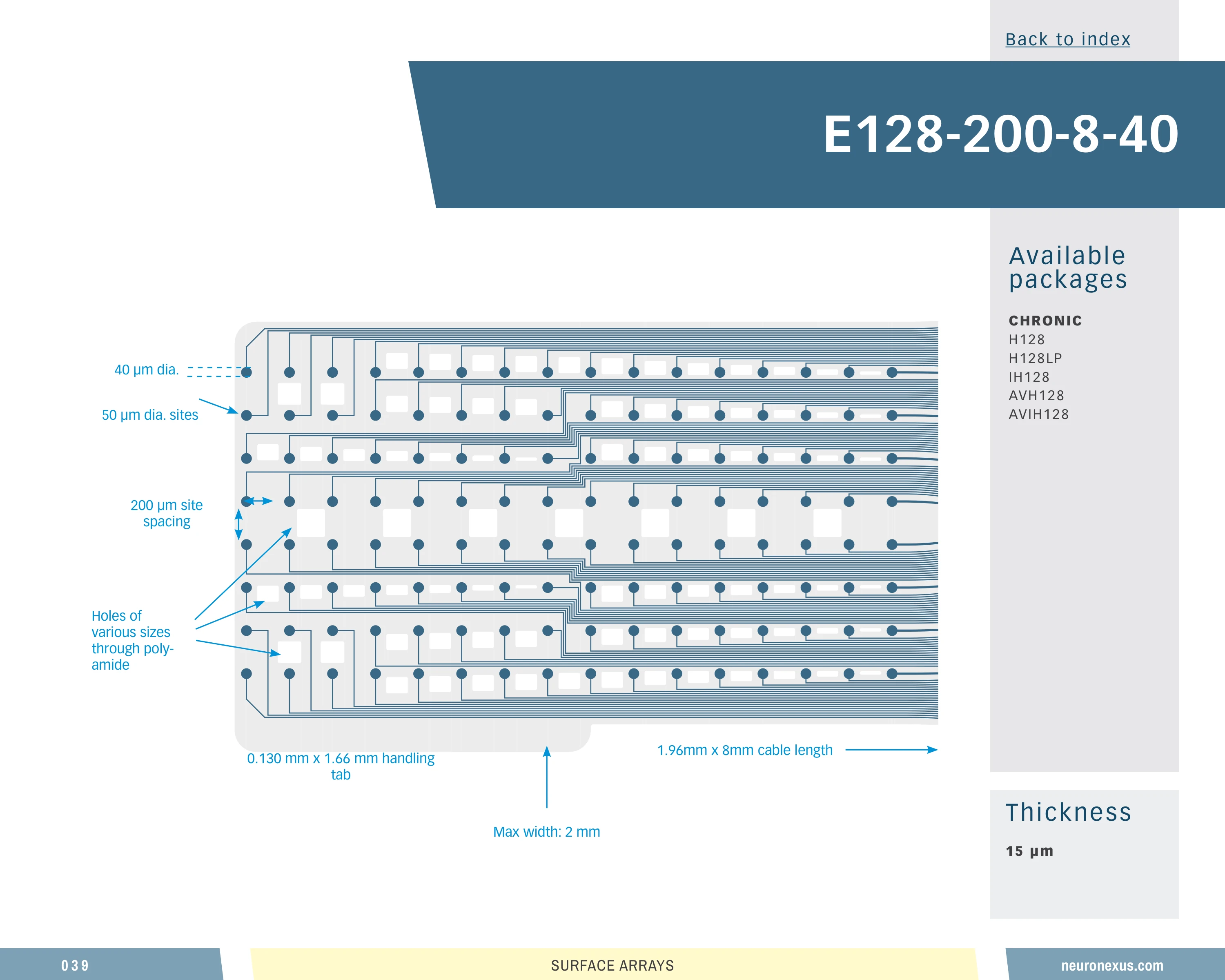

Site geometryEstimated from the catalog drawing and similar designs
Neural interface volume3.434 mm³ (higher than 20% of 55 designs)
Site coverage density29.2 sites/mm² (higher than 93% of 55 designs)
Brain coverage density37.3 sites/mm³ (higher than 93% of 55 designs)
NetSuite ID

7767

ECoG 128-Channel GridSKU grd_cog--e128_200_cl8_40NetSuite 7767

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

6 options

Configure

Compatible Package
All
H128LP_T
HC128 — 128-ch Omnetics
IH128 — 128-ch
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic

Your selection

128-channel thin-film ECoG grid — 12 μm, H128LP_T
H128LP_T
Compatible Package: H128LP_T
SKUgrd_cog--e128_200_cl8_40.12um.h128lp_t
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

6 of 6
ECoG 128-Channel GridSKU grd_cog--e128_200_cl8_40NetSuite 7767

Loading the compatible products…

ECoG 128-Channel GridSKU grd_cog--e128_200_cl8_40NetSuite 7767

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

9 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
128
3256

Top 4% of catalog designs

Sites 128 — higher than 96% of catalog designs and 94% of its family
Span, x
3.04 mm
0.1 mm36.5 mm

Top 71% of catalog designs

Span, x 3.04 mm — higher than 29% of catalog designs and 43% of its family
Span, y
1.44 mm
0.26 mm79 mm

Top 87% of catalog designs

Span, y 1.44 mm — higher than 13% of catalog designs and 17% of its family
Site pitch, x
0.2 µm
0.15 µm6 µm

Top 91% of catalog designs

Site pitch, x 0.2 µm — higher than 9% of catalog designs and 15% of its family
Site pitch, y
0.2 µm
0.08 µm5.59 µm

Top 89% of catalog designs

Site pitch, y 0.2 µm — higher than 11% of catalog designs and 15% of its family
Site outline area
4.38 mm²
0.026 mm²970.7 mm²

Top 80% of catalog designs

Site outline area 4.38 mm² — higher than 20% of catalog designs and 29% of its family
Neural interface volume
3.43 mm³
0.228 mm³501.1 mm³

Top 80% of catalog designs

Neural interface volume 3.43 mm³ — higher than 20% of catalog designs and 29% of its family
Site coverage density
29.24 sites/mm²
0.066 sites/mm²134.5 sites/mm²

Top 7% of catalog designs

Site coverage density 29.24 sites/mm² — higher than 93% of catalog designs and 91% of its family
Brain coverage density
37.28 sites/mm³
0.128 sites/mm³61.01 sites/mm³

Top 7% of catalog designs

Brain coverage density 37.28 sites/mm³ — higher than 93% of catalog designs and 89% of its family
ECoG 128-Channel GridSKU grd_cog--e128_200_cl8_40NetSuite 7767

5 notes · Epidural or subdural — the decision that shapes the experiment · What holds the array against the brain · Coverage and site layout …

ECoG 128-Channel GridSKU grd_cog--e128_200_cl8_40NetSuite 7767

15 links · Thin-Film Grids for Surface Recording · Care, Use and Handling · Choosing an Electrode for Your Experiment …

ECoG 128-Channel GridSKU grd_cog--e128_200_cl8_40NetSuite 7767

Cited in 74 publications (product line)
