Grids · ECoG Series

ECoG 128-Channel Grid

128Sites
12µmThickness
11.2mmWidth
31,416µm²Site Area
Part no.E128-1000-1000-cl60-200
Contents

128-site ECoG grid, 200 µm sites

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying mid-sized sites that trade local detail for signal, on a long cable for routing to the connector. Among the 55 grid designs in the design space it is in the upper quartile: 128 sites (96th percentile), a 12 mm site-array span (82nd percentile), 0.94 sites/mm² (47th percentile) and a 74 mm³ neural interface (85th percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 1 of them microdrive-compatible. Polyimide 12 µm thick. 60 mm cable. Research use only.

Also known as

e128_1000_1000_60_200

ECoG 128-Channel GridSKU grd_cog--e128_1000_1000_cl60_200

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

11 specs

Channels128
Site layoutGrid
Site area31,416 µm²
Span12200 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm

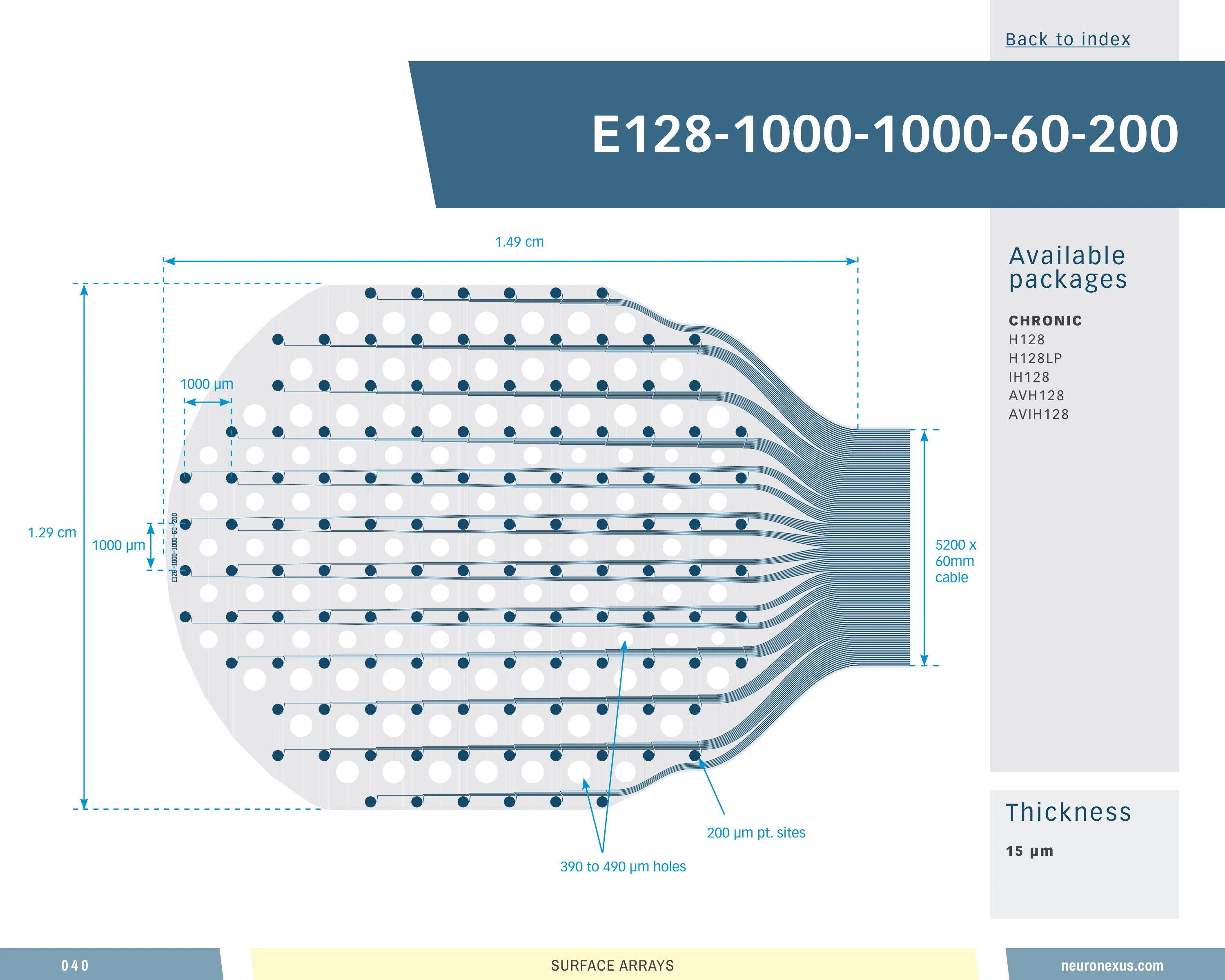

Site geometryEstimated from the catalog drawing and similar designs
Neural interface volume74.295 mm³ (higher than 85% of 55 designs)
Site coverage density0.9 sites/mm² (higher than 47% of 55 designs)
Brain coverage density1.7 sites/mm³ (higher than 49% of 55 designs)
ECoG 128-Channel GridSKU grd_cog--e128_1000_1000_cl60_200

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

6 options

Configure

Compatible Package
All
H128LP — 128-ch Omnetics
HC128 — 128-ch Omnetics
IH128 — 128-ch
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic

Your selection

128-channel thin-film ECoG grid — HC128, 12 μm
HC128
Compatible Package: HC128 — 128-ch Omnetics
SKUgrd_cog--e128_1000_1000_cl60_200.12um.hc128
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

6 of 6
ECoG 128-Channel GridSKU grd_cog--e128_1000_1000_cl60_200

Loading the compatible products…

ECoG 128-Channel GridSKU grd_cog--e128_1000_1000_cl60_200

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

9 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
128
3256

Top 4% of catalog designs

Sites 128 — higher than 96% of catalog designs and 94% of its family
Span, x
11.2 mm
0.1 mm36.5 mm

Top 11% of catalog designs

Span, x 11.2 mm — higher than 89% of catalog designs and 94% of its family
Span, y
12.2 mm
0.26 mm79 mm

Top 18% of catalog designs

Span, y 12.2 mm — higher than 82% of catalog designs and 86% of its family
Site pitch, x
1 µm
0.15 µm6 µm

Top 51% of catalog designs

Site pitch, x 1 µm — higher than 49% of catalog designs and 76% of its family
Site pitch, y
1 µm
0.08 µm5.59 µm

Top 44% of catalog designs

Site pitch, y 1 µm — higher than 56% of catalog designs and 74% of its family
Site outline area
136.6 mm²
0.026 mm²970.7 mm²

Top 15% of catalog designs

Site outline area 136.6 mm² — higher than 85% of catalog designs and 89% of its family
Neural interface volume
74.3 mm³
0.228 mm³501.1 mm³

Top 15% of catalog designs

Neural interface volume 74.3 mm³ — higher than 85% of catalog designs and 89% of its family
Site coverage density
0.937 sites/mm²
0.066 sites/mm²134.5 sites/mm²

Top 53% of catalog designs

Site coverage density 0.937 sites/mm² — higher than 47% of catalog designs and 26% of its family
Brain coverage density
1.72 sites/mm³
0.128 sites/mm³61.01 sites/mm³

Top 51% of catalog designs

Brain coverage density 1.72 sites/mm³ — higher than 49% of catalog designs and 29% of its family
ECoG 128-Channel GridSKU grd_cog--e128_1000_1000_cl60_200

5 notes · Epidural or subdural — the decision that shapes the experiment · What holds the array against the brain · Coverage and site layout …

ECoG 128-Channel GridSKU grd_cog--e128_1000_1000_cl60_200

15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

ECoG 128-Channel GridSKU grd_cog--e128_1000_1000_cl60_200

Cited in 74 publications (product line)
