ECoG 16-Channel Grid

16Sites
12µmThickness
0.925mmWidth
491µm²Site Area
Part no.E16-300-cl5-25
Contents

16-site ECoG grid, 25 µm sites

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance, on a short cable for a compact head end. Among the 55 grid designs in the design space it is in the lower quartile: 16 sites (a common choice — 8 of 55), a 0.93 mm site-array span (11th percentile), 19 sites/mm² (87th percentile) and a 1.02 mm³ neural interface (7th percentile).

Orders as a grid-plus-package assembly, in 5 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 5 mm cable. Research use only.

Also known as

e16_300_5_25

ECoG 16-Channel GridSKU grd_cog--e16_300_cl5_25

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

11 specs

Channels16
Site layoutGrid
Site area491 µm²
Span925 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm

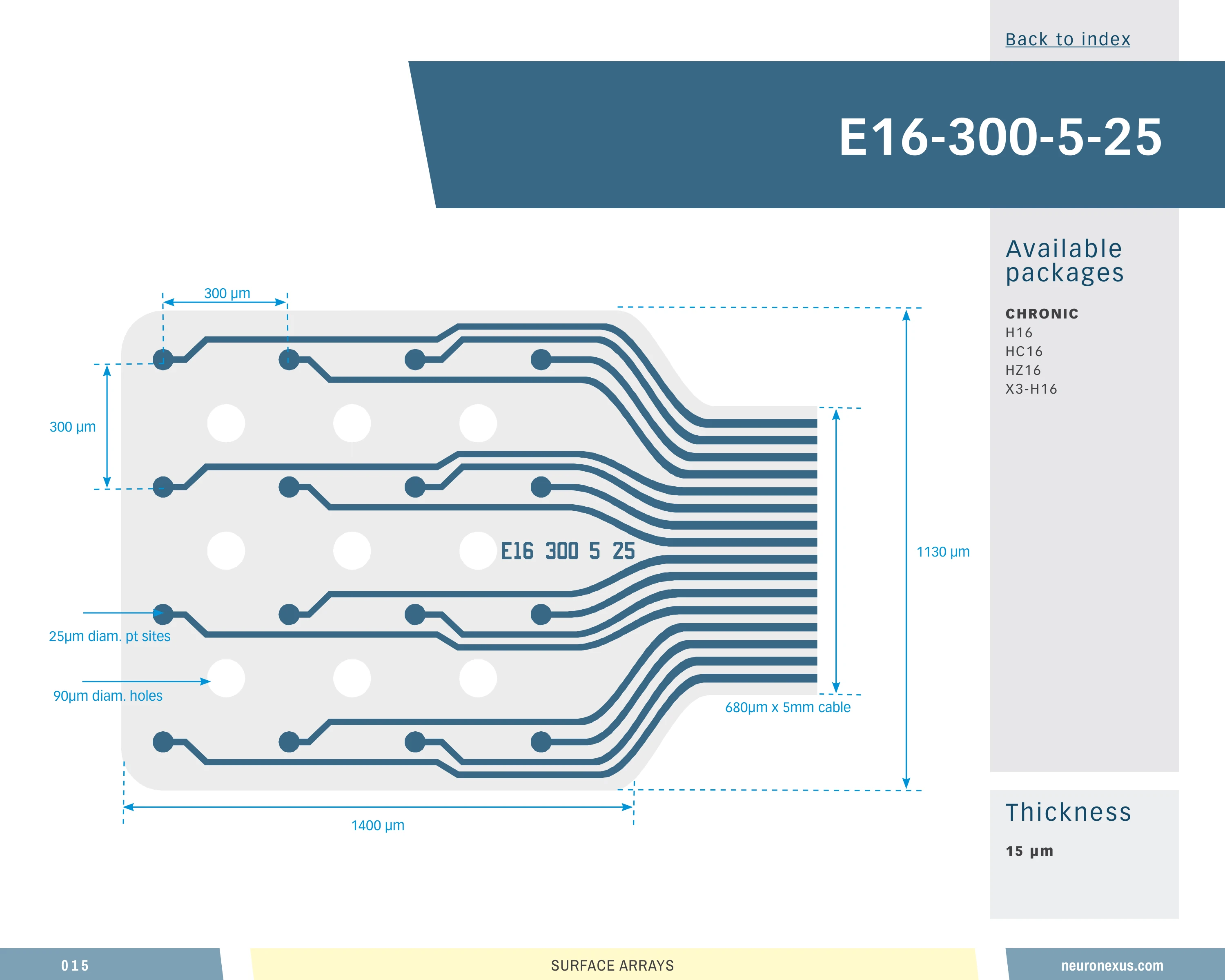

Site geometryEstimated from the catalog drawing and similar designs
Neural interface volume1.015 mm³ (higher than 7% of 55 designs)
Site coverage density18.7 sites/mm² (higher than 87% of 55 designs)
Brain coverage density15.8 sites/mm³ (higher than 85% of 55 designs)
ECoG 16-Channel GridSKU grd_cog--e16_300_cl5_25
