Grids · ECoG Series

ECoG 128-Channel Grid

128Sites
12µmThickness
1.547mmWidth
2,827µm²Site Area
Part no.E128-150-186-cl20mm-60
Contents

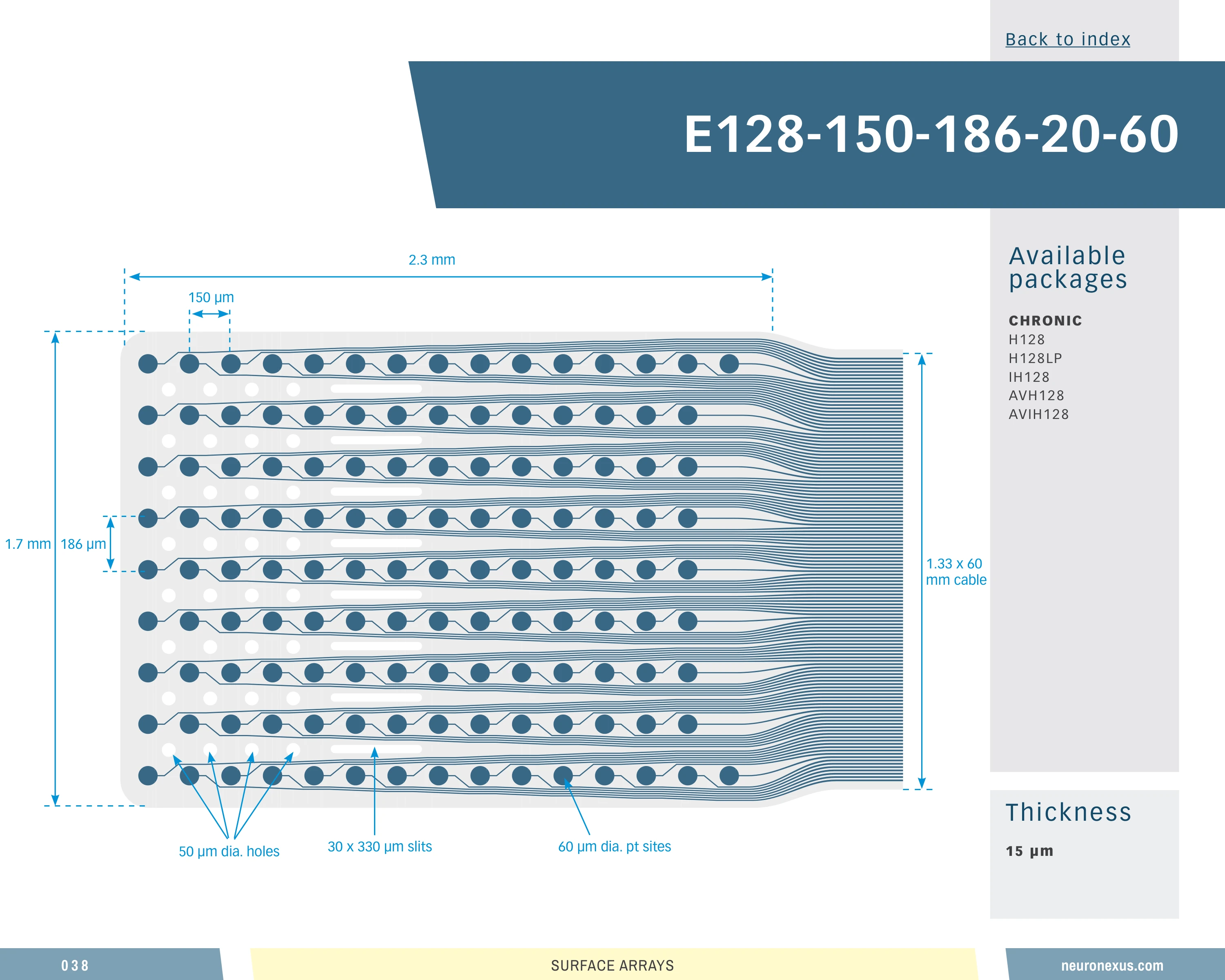

128-site ECoG grid, 60 µm sites

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance. Among the 55 grid designs in the design space it is mid-range: 128 sites (96th percentile), a 2.16 mm site-array span (24th percentile), 38 sites/mm² (95th percentile) and a 2.72 mm³ neural interface (18th percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 1 of them microdrive-compatible. Polyimide 12 µm thick. Research use only.

Also known as

e128_150_186_20_60

ECoG 128-Channel GridSKU grd_cog--e128_150_186_cl20mm_60

10 specs

Channels128
Site layoutGrid
Site area2,827 µm²
Span2160 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm
Neural interface volume2.723 mm³ (higher than 18% of 55 designs)
Site coverage density38.3 sites/mm² (higher than 95% of 55 designs)
Brain coverage density47.0 sites/mm³ (higher than 98% of 55 designs)
ECoG 128-Channel GridSKU grd_cog--e128_150_186_cl20mm_60

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

6 options

Configure

Compatible Package
All
H128LP_T
HC128 — 128-ch Omnetics
IH128 — 128-ch
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic

Your selection

128-channel thin-film ECoG grid — 12 μm, H128LP_T
H128LP_T
Compatible Package: H128LP_T
SKUgrd_cog--e128_150_186_cl20mm_60.12um.h128lp_t
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

6 of 6
ECoG 128-Channel GridSKU grd_cog--e128_150_186_cl20mm_60

Loading the compatible products…

ECoG 128-Channel GridSKU grd_cog--e128_150_186_cl20mm_60

9 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
128
3256

Top 4% of catalog designs

Sites 128 — higher than 96% of catalog designs and 94% of its family
Span, x
1.55 mm
0.1 mm36.5 mm

Top 85% of catalog designs

Span, x 1.55 mm — higher than 15% of catalog designs and 20% of its family
Span, y
2.16 mm
0.26 mm79 mm

Top 76% of catalog designs

Span, y 2.16 mm — higher than 24% of catalog designs and 34% of its family
Site pitch, x
0.186 µm
0.15 µm6 µm

Top 96% of catalog designs

Site pitch, x 0.186 µm — higher than 4% of catalog designs and 6% of its family
Site pitch, y
0.15 µm
0.08 µm5.59 µm

Top 93% of catalog designs

Site pitch, y 0.15 µm — higher than 7% of catalog designs and 9% of its family
Site outline area
3.34 mm²
0.026 mm²970.7 mm²

Top 82% of catalog designs

Site outline area 3.34 mm² — higher than 18% of catalog designs and 26% of its family
Neural interface volume
2.72 mm³
0.228 mm³501.1 mm³

Top 82% of catalog designs

Neural interface volume 2.72 mm³ — higher than 18% of catalog designs and 26% of its family
Site coverage density
38.3 sites/mm²
0.066 sites/mm²134.5 sites/mm²

Top 5% of catalog designs

Site coverage density 38.3 sites/mm² — higher than 95% of catalog designs and 94% of its family
Brain coverage density
47.01 sites/mm³
0.128 sites/mm³61.01 sites/mm³

Top 2% of catalog designs

Brain coverage density 47.01 sites/mm³ — higher than 98% of catalog designs and 97% of its family
ECoG 128-Channel GridSKU grd_cog--e128_150_186_cl20mm_60

5 notes · Epidural or subdural — the decision that shapes the experiment · What holds the array against the brain · Coverage and site layout …

ECoG 128-Channel GridSKU grd_cog--e128_150_186_cl20mm_60

15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

ECoG 128-Channel GridSKU grd_cog--e128_150_186_cl20mm_60

Cited in 74 publications (product line)
