ECoG 16-Channel Grid

16Sites
12µmThickness
1.698mmWidth
31,416µm²Site Area
Part no.E16-500-cl5-200
Contents

16-site ECoG grid, 200 µm sites

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying mid-sized sites that trade local detail for signal. Among the 55 grid designs in the design space it is in the lower quartile: 16 sites (a common choice — 8 of 55), a 1.7 mm site-array span (18th percentile), 5.55 sites/mm² (75th percentile) and a 2.42 mm³ neural interface (16th percentile).

Orders as a grid-plus-package assembly, in 5 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. Research use only.

Also known as

e16_500_5_200

ECoG 16-Channel GridSKU grd_cog--e16_500_cl5_200

10 specs

Channels16
Site layoutGrid
Site area31,416 µm²

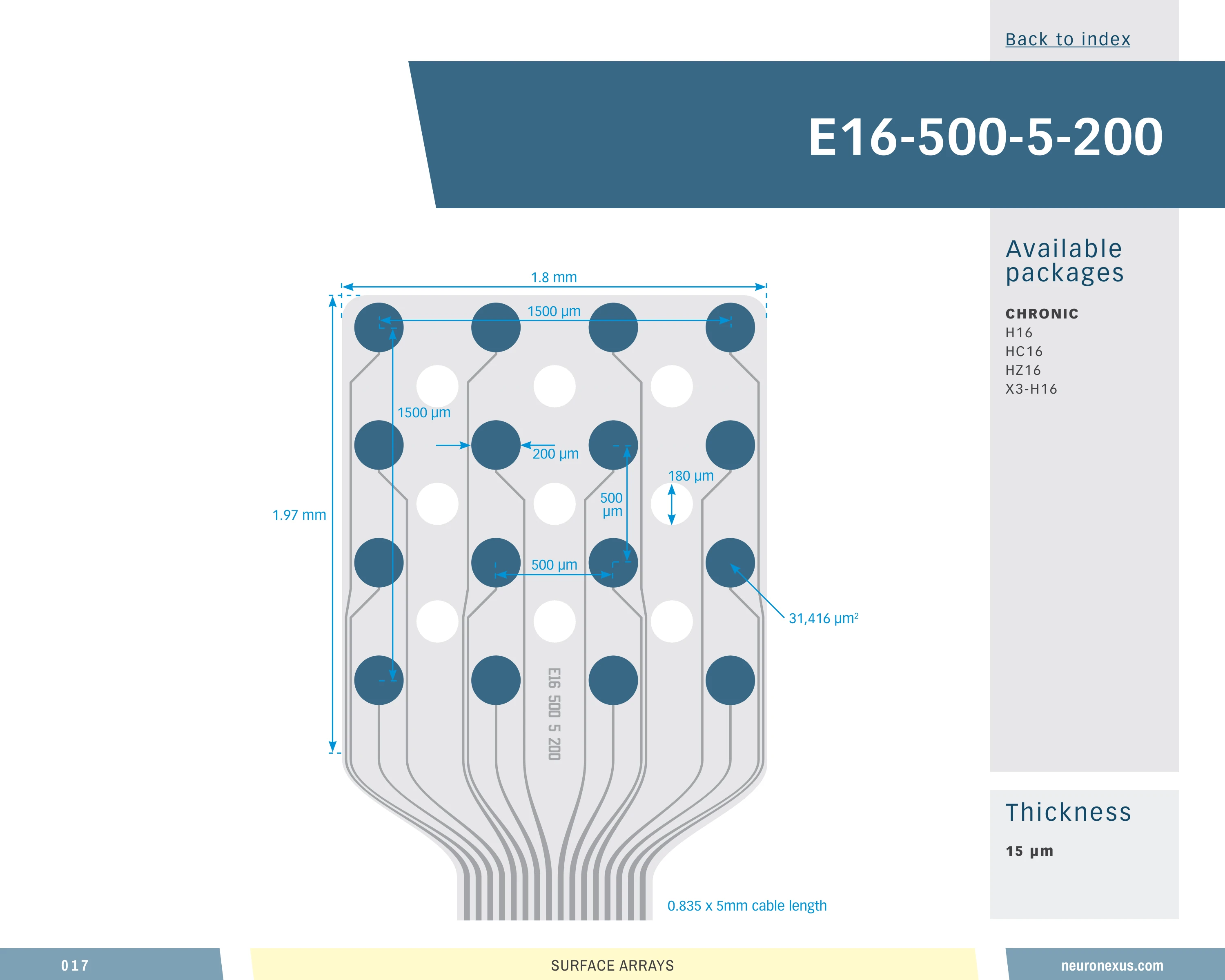

Span1699 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm
Neural interface volume2.416 mm³ (higher than 16% of 55 designs)
Site coverage density5.5 sites/mm² (higher than 75% of 55 designs)
Brain coverage density6.6 sites/mm³ (higher than 69% of 55 designs)
