ECoG 16-Channel Grid
16-site ECoG grid, 50 µm sites

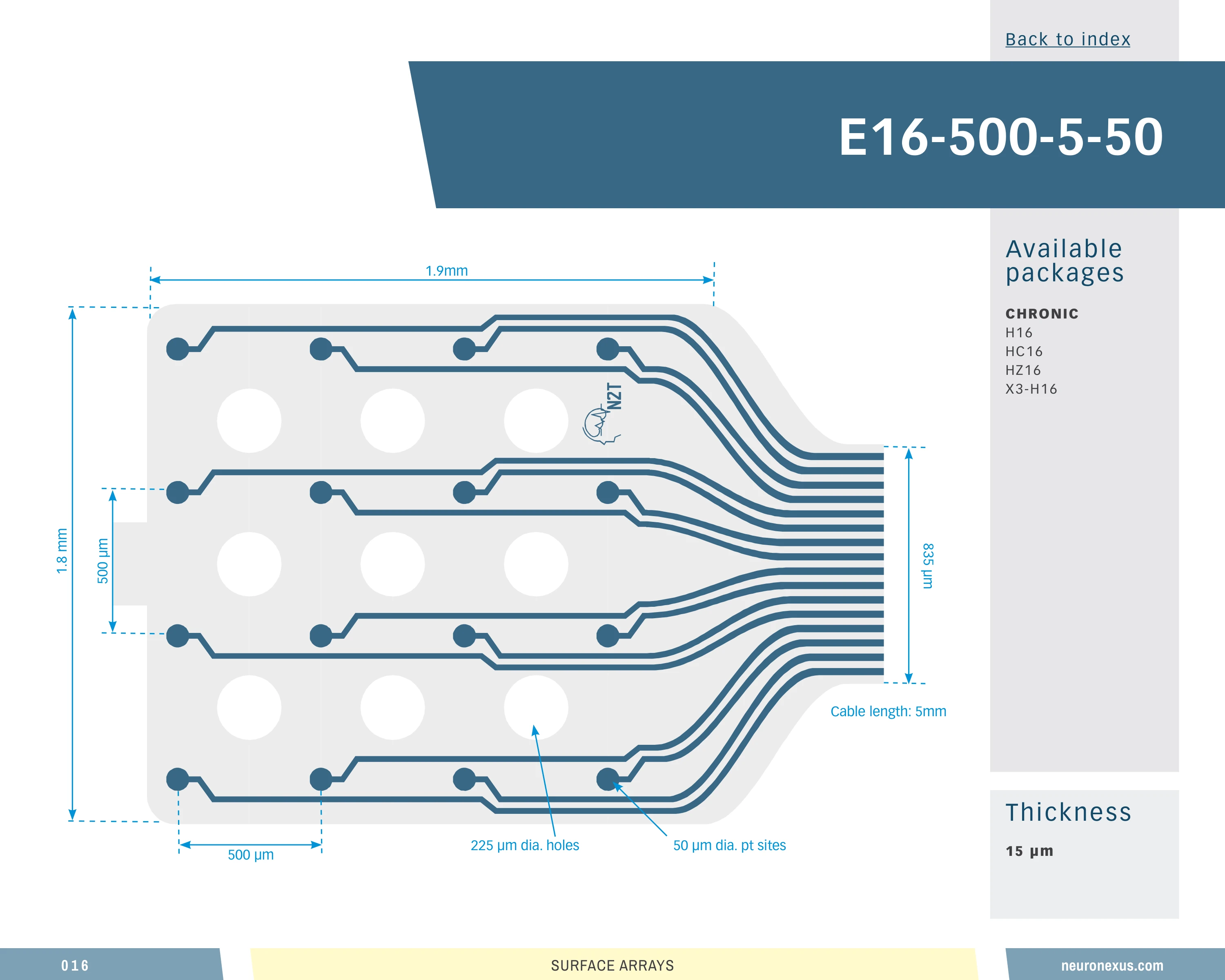

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance, on a short cable for a compact head end. Among the 55 grid designs in the design space it is in the lower quartile: 16 sites (a common choice — 8 of 55), a 1.55 mm site-array span (15th percentile), 6.66 sites/mm² (78th percentile) and a 2.1 mm³ neural interface (13th percentile).
Orders as a grid-plus-package assembly, in 5 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 5 mm cable. Research use only.
e16_500_5_50
11 specs
| Channels | 16 |
|---|---|
| Site layout | Grid |
| Site area | 1,963 µm² |
| Span | 1550 µm |
| Substrate | Polyimide |
| Site material | Platinum |
| Thickness | 12 µm |
| Site geometry | Estimated from the catalog drawing and similar designs |
| Neural interface volume | 2.101 mm³ (higher than 13% of 55 designs) |
| Site coverage density | 6.7 sites/mm² (higher than 78% of 55 designs) |
| Brain coverage density | 7.6 sites/mm³ (higher than 78% of 55 designs) |
