Grids · ECoG Series

ECoG 256-Channel Grid

256Sites
12µmThickness
3.08mmWidth
5,027µm²Site Area
Part no.E256-200-cl30-80
Contents

256-site ECoG grid

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance, on a long cable for routing to the connector. Among the 55 grid designs in the design space it is mid-range: 256 sites (100th percentile), a 3.08 mm site-array span (33rd percentile), 27 sites/mm² (91st percentile) and a 6.41 mm³ neural interface (29th percentile).

Orders as a grid-plus-package assembly, in 2 package configurations. Polyimide 12 µm thick. 30 mm cable. Research use only.

Also known as

e256_200_30_80 · E256-200-30-80-IH256

ECoG 256-Channel GridSKU grd_cog--e256_200_cl30_80

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

11 specs

Channels256
Site layoutGrid
Site area5,027 µm²
Span3080 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm

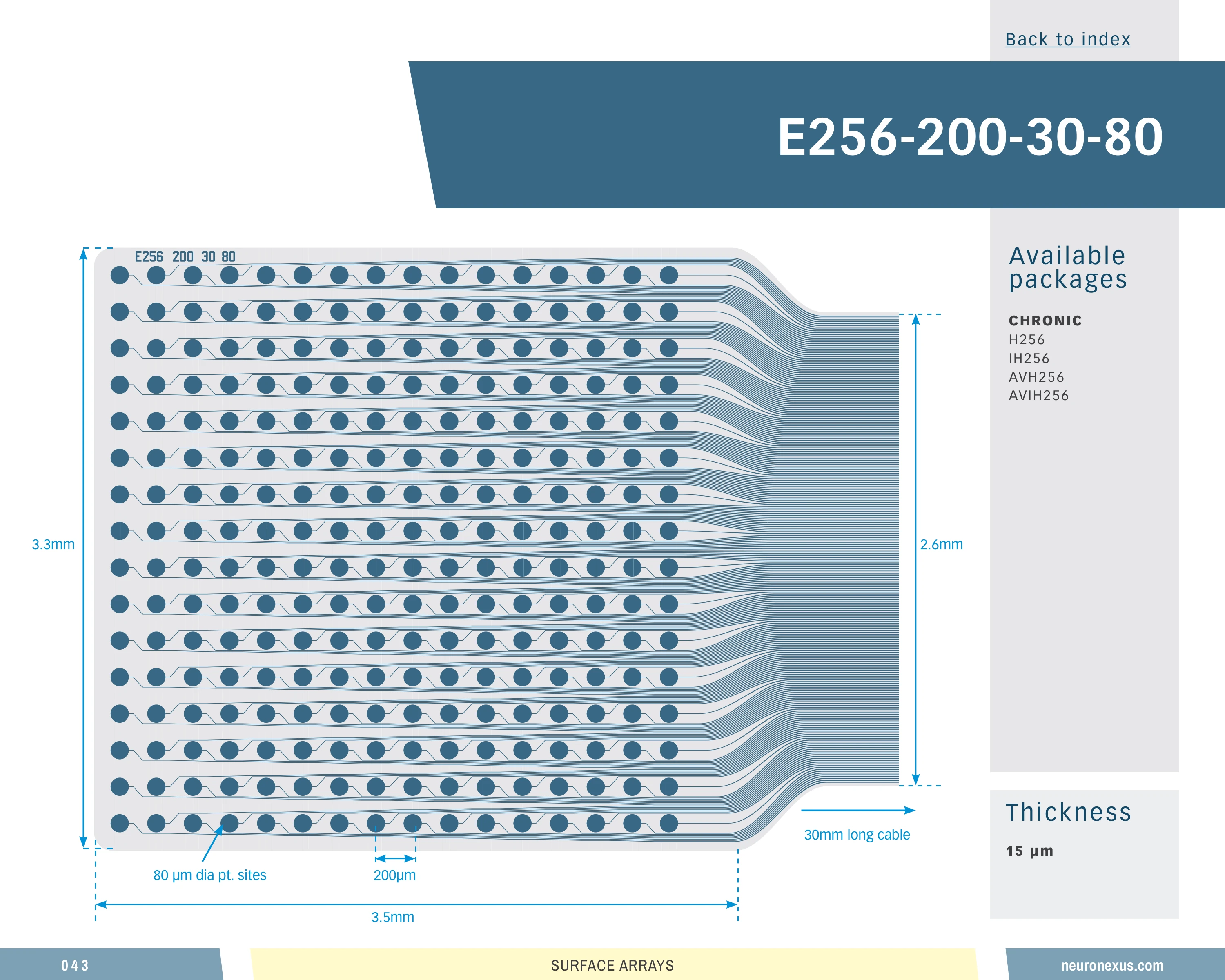

Site geometryEstimated from the catalog drawing and similar designs
Neural interface volume6.408 mm³ (higher than 29% of 55 designs)
Site coverage density27.0 sites/mm² (higher than 91% of 55 designs)
Brain coverage density39.9 sites/mm³ (higher than 96% of 55 designs)
ECoG 256-Channel GridSKU grd_cog--e256_200_cl30_80

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

2 options

Configure

Compatible Package
All
AVH256 — 256-ch
IH256 — 256-ch

Your selection

256-channel thin-film ECoG grid — IH256, 12 μm
IH256
Compatible Package: IH256 — 256-ch
SKUgrd_cog--e256_200_cl30_80.12um.ih256
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

2 of 2
ECoG 256-Channel GridSKU grd_cog--e256_200_cl30_80

Loading the compatible products…

ECoG 256-Channel GridSKU grd_cog--e256_200_cl30_80

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

9 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
256
3256

Largest among catalog designs · largest in its family

Sites 256 — higher than 100% of catalog designs and 100% of its family (the largest in its family, 35 designs)
Span, x
3.08 mm
0.1 mm36.5 mm

Top 69% of catalog designs

Span, x 3.08 mm — higher than 31% of catalog designs and 46% of its family
Span, y
3.08 mm
0.26 mm79 mm

Top 67% of catalog designs

Span, y 3.08 mm — higher than 33% of catalog designs and 46% of its family
Site pitch, x
0.2 µm
0.15 µm6 µm

Top 91% of catalog designs

Site pitch, x 0.2 µm — higher than 9% of catalog designs and 15% of its family
Site pitch, y
0.2 µm
0.08 µm5.59 µm

Top 89% of catalog designs

Site pitch, y 0.2 µm — higher than 11% of catalog designs and 15% of its family
Site outline area
9.49 mm²
0.026 mm²970.7 mm²

Top 69% of catalog designs

Site outline area 9.49 mm² — higher than 31% of catalog designs and 46% of its family
Neural interface volume
6.41 mm³
0.228 mm³501.1 mm³

Top 71% of catalog designs

Neural interface volume 6.41 mm³ — higher than 29% of catalog designs and 43% of its family
Site coverage density
26.99 sites/mm²
0.066 sites/mm²134.5 sites/mm²

Top 9% of catalog designs

Site coverage density 26.99 sites/mm² — higher than 91% of catalog designs and 89% of its family
Brain coverage density
39.95 sites/mm³
0.128 sites/mm³61.01 sites/mm³

Top 4% of catalog designs

Brain coverage density 39.95 sites/mm³ — higher than 96% of catalog designs and 94% of its family
ECoG 256-Channel GridSKU grd_cog--e256_200_cl30_80

5 notes · Epidural or subdural — the decision that shapes the experiment · What holds the array against the brain · Coverage and site layout …

ECoG 256-Channel GridSKU grd_cog--e256_200_cl30_80

15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

ECoG 256-Channel GridSKU grd_cog--e256_200_cl30_80

Cited in 74 publications (product line)
