Grids · ECoG Series

ECoG 29-Channel Grid

29Sites
12µmThickness
0.625mmWidth
491µm²Site Area
Part no.E29-80s-cl25-15
Contents

29-site ECoG grid

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance, on a long cable for routing to the connector. Among the 55 grid designs in the design space it is in the lower quartile: 29 sites (33rd percentile), a 0.34 mm site-array span (4th percentile), 134 sites/mm² (100th percentile) and a 0.48 mm³ neural interface (4th percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 25 mm cable. Research use only.

Also known as

e29_80s_25_15

ECoG 29-Channel GridSKU grd_cog--e29_80s_cl25_15

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

11 specs

Channels29
Site layoutGrid
Site area491 µm²
Span345 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm

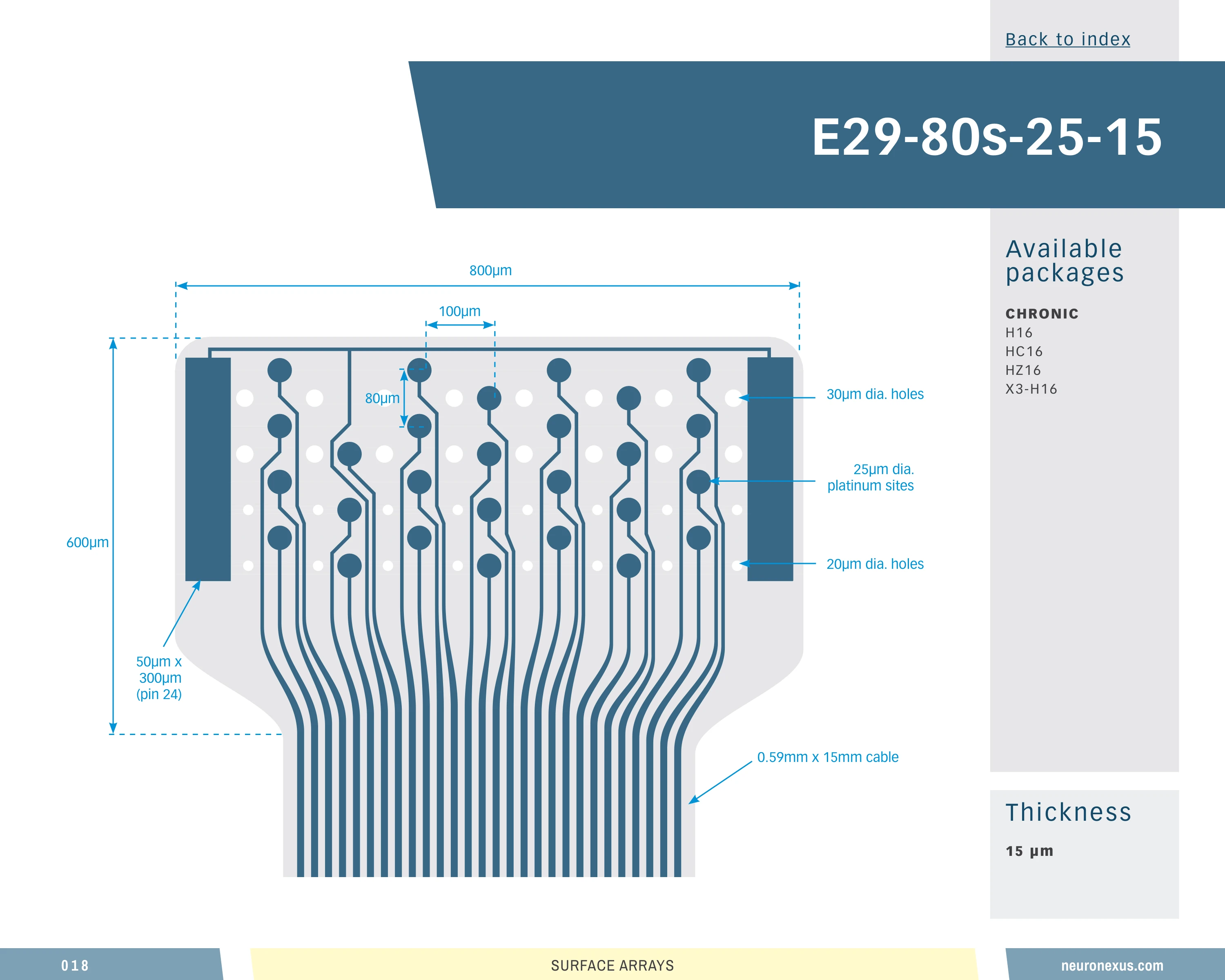

Site geometryEstimated from the catalog drawing and similar designs
Neural interface volume0.475 mm³ (higher than 4% of 55 designs)
Site coverage density134.5 sites/mm² (the highest of 55 designs)
Brain coverage density61.0 sites/mm³ (the highest of 55 designs)
ECoG 29-Channel GridSKU grd_cog--e29_80s_cl25_15

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

6 options

Configure

Compatible Package
All
H32 — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
X3_H32 — 32-ch Molex

Your selection

29-channel thin-film ECoG grid — H32, 12 μm
H32
Compatible Package: H32 — 32-ch Omnetics
SKUgrd_cog--e29_80s_cl25_15.12um.h32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

6 of 6
ECoG 29-Channel GridSKU grd_cog--e29_80s_cl25_15

Loading the compatible products…

ECoG 29-Channel GridSKU grd_cog--e29_80s_cl25_15

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

9 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
29
3256

Top 67% of catalog designs

Sites 29 — higher than 33% of catalog designs and 23% of its family
Span, x
0.625 mm
0.1 mm36.5 mm

Top 95% of catalog designs

Span, x 0.625 mm — higher than 5% of catalog designs and 6% of its family
Span, y
0.345 mm
0.26 mm79 mm

Top 96% of catalog designs

Span, y 0.345 mm — higher than 4% of catalog designs and 3% of its family
Site pitch, x
0.2 µm
0.15 µm6 µm

Top 91% of catalog designs

Site pitch, x 0.2 µm — higher than 9% of catalog designs and 15% of its family
Site pitch, y
0.08 µm
0.08 µm5.59 µm

Top 98% of catalog designs

Site pitch, y 0.08 µm — higher than 2% of catalog designs and 3% of its family
Site outline area
0.216 mm²
0.026 mm²970.7 mm²

Top 96% of catalog designs

Site outline area 0.216 mm² — higher than 4% of catalog designs and 3% of its family
Neural interface volume
0.475 mm³
0.228 mm³501.1 mm³

Top 96% of catalog designs

Neural interface volume 0.475 mm³ — higher than 4% of catalog designs and 3% of its family
Site coverage density
134.5 sites/mm²
0.066 sites/mm²134.5 sites/mm²

Largest among catalog designs · largest in its family

Site coverage density 134.5 sites/mm² — higher than 100% of catalog designs and 100% of its family (the largest in its family, 35 designs)
Brain coverage density
61.01 sites/mm³
0.128 sites/mm³61.01 sites/mm³

Largest among catalog designs · largest in its family

Brain coverage density 61.01 sites/mm³ — higher than 100% of catalog designs and 100% of its family (the largest in its family, 35 designs)
ECoG 29-Channel GridSKU grd_cog--e29_80s_cl25_15

5 notes · Epidural or subdural — the decision that shapes the experiment · What holds the array against the brain · Coverage and site layout …

ECoG 29-Channel GridSKU grd_cog--e29_80s_cl25_15

15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

ECoG 29-Channel GridSKU grd_cog--e29_80s_cl25_15

Cited in 74 publications (product line)
