Grids · ECoG Series

ECoG 32-Channel Grid

32Sites
12µmThickness
7.05mmWidth
1,963µm²Site Area
Part no.E32-1000-cl30-50
Contents

32-site ECoG grid, 50 µm sites, 7 × 3 mm

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance, on a long cable for routing to the connector. Among the 55 grid designs in the design space it is mid-range: 32 sites (a common choice — 16 of 55), a 3.05 mm site-array span (31st percentile), 1.49 sites/mm² (60th percentile) and a 13 mm³ neural interface (51st percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 30 mm cable. Research use only.

Also known as

e32_1000_30_50

ECoG 32-Channel GridSKU grd_cog--e32_1000_cl30_50

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

11 specs

Channels32
Site layoutGrid
Site area1,963 µm²
Span3050 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm

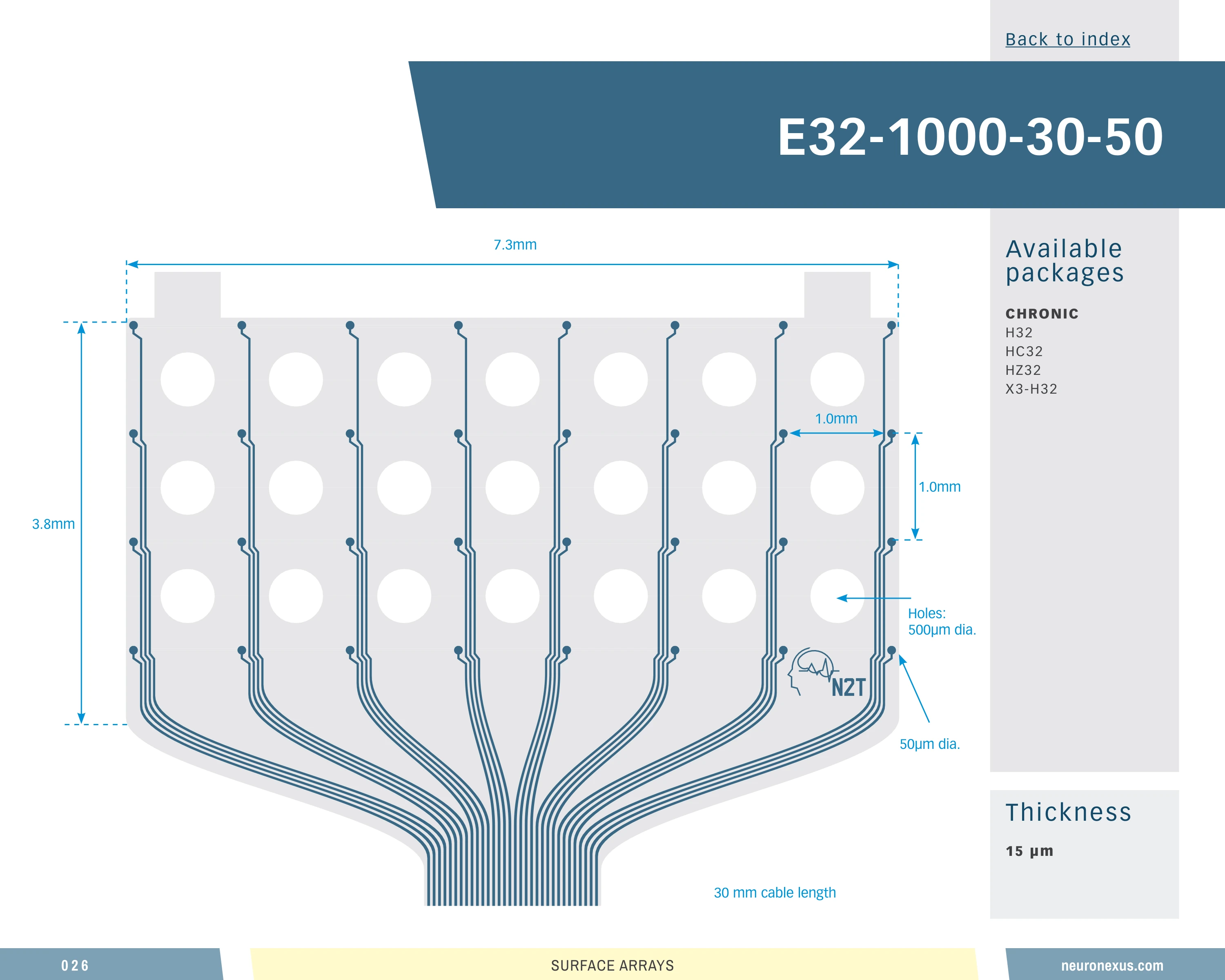

Site geometryEstimated from the catalog drawing and similar designs
Neural interface volume13.401 mm³ (higher than 51% of 55 designs)
Site coverage density1.5 sites/mm² (higher than 60% of 55 designs)
Brain coverage density2.4 sites/mm³ (higher than 60% of 55 designs)
ECoG 32-Channel GridSKU grd_cog--e32_1000_cl30_50

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

6 options

Configure

Compatible Package
All
H32 — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
X3_H32 — 32-ch Molex

Your selection

32-channel thin-film ECoG grid — H32, 12 μm
H32
Compatible Package: H32 — 32-ch Omnetics
SKUgrd_cog--e32_1000_cl30_50.12um.h32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

6 of 6
ECoG 32-Channel GridSKU grd_cog--e32_1000_cl30_50

Loading the compatible products…

ECoG 32-Channel GridSKU grd_cog--e32_1000_cl30_50

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

9 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
3256

Top 33% of catalog designs

Sites 32 — higher than 67% of catalog designs and 60% of its family
Span, x
7.05 mm
0.1 mm36.5 mm

Top 40% of catalog designs

Span, x 7.05 mm — higher than 60% of catalog designs and 71% of its family
Span, y
3.05 mm
0.26 mm79 mm

Top 69% of catalog designs

Span, y 3.05 mm — higher than 31% of catalog designs and 43% of its family
Site pitch, x
1 µm
0.15 µm6 µm

Top 51% of catalog designs

Site pitch, x 1 µm — higher than 49% of catalog designs and 76% of its family
Site pitch, y
1 µm
0.08 µm5.59 µm

Top 44% of catalog designs

Site pitch, y 1 µm — higher than 56% of catalog designs and 74% of its family
Site outline area
21.5 mm²
0.026 mm²970.7 mm²

Top 49% of catalog designs

Site outline area 21.5 mm² — higher than 51% of catalog designs and 69% of its family
Neural interface volume
13.4 mm³
0.228 mm³501.1 mm³

Top 49% of catalog designs

Neural interface volume 13.4 mm³ — higher than 51% of catalog designs and 69% of its family
Site coverage density
1.49 sites/mm²
0.066 sites/mm²134.5 sites/mm²

Top 40% of catalog designs

Site coverage density 1.49 sites/mm² — higher than 60% of catalog designs and 40% of its family
Brain coverage density
2.39 sites/mm³
0.128 sites/mm³61.01 sites/mm³

Top 40% of catalog designs

Brain coverage density 2.39 sites/mm³ — higher than 60% of catalog designs and 40% of its family
ECoG 32-Channel GridSKU grd_cog--e32_1000_cl30_50

5 notes · Epidural or subdural — the decision that shapes the experiment · What holds the array against the brain · Coverage and site layout …

ECoG 32-Channel GridSKU grd_cog--e32_1000_cl30_50

15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

ECoG 32-Channel GridSKU grd_cog--e32_1000_cl30_50

Cited in 74 publications (product line)
