ECoG 32-Channel Grid

32Sites
12µmThickness
0.94mmWidth
1,257µm²Site Area
Part no.E32-150-cl70-40
Contents

32-site ECoG grid, 40 µm sites

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance, on a long cable for routing to the connector. Among the 55 grid designs in the design space it sits at the bottom: 32 sites (a common choice — 16 of 55), a 0.64 mm site-array span (7th percentile), 53 sites/mm² (96th percentile) and a 0.82 mm³ neural interface (5th percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 70 mm cable. Research use only.

Also known as

e32_150_70_40

ECoG 32-Channel GridSKU grd_cog--e32_150_cl70_40

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

11 specs

Channels32
Site layoutGrid
Site area1,257 µm²
Span640 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm

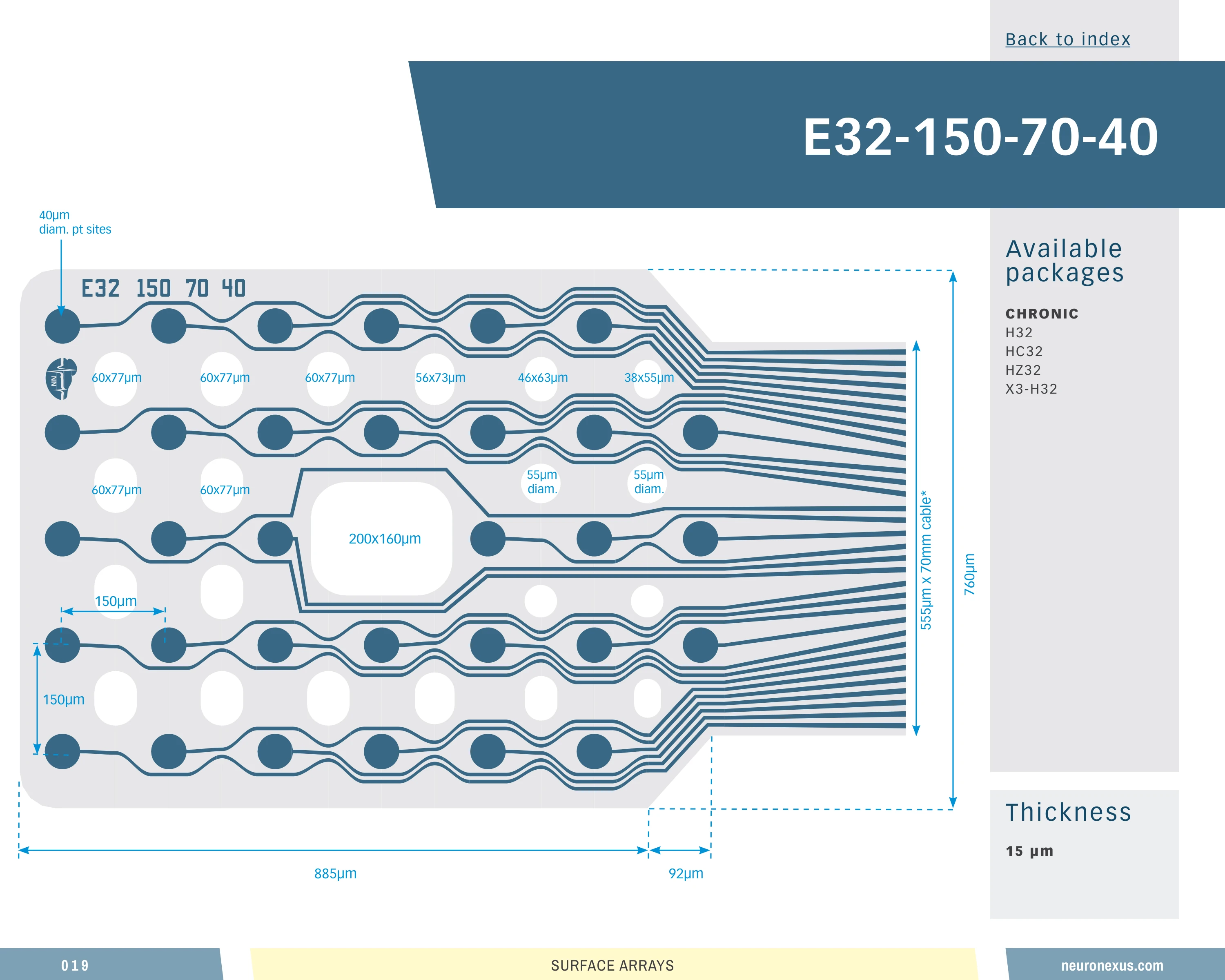

Site geometryEstimated from the catalog drawing and similar designs
Neural interface volume0.821 mm³ (higher than 5% of 55 designs)
Site coverage density53.2 sites/mm² (higher than 96% of 55 designs)
Brain coverage density39.0 sites/mm³ (higher than 95% of 55 designs)
ECoG 32-Channel GridSKU grd_cog--e32_150_cl70_40
