Grids · ECoG Series

ECoG 32-Channel Grid

32Sites
12µmThickness
10.1mmWidth
7,854µm²Site Area
Part no.E32-2000-cl30-100
Contents

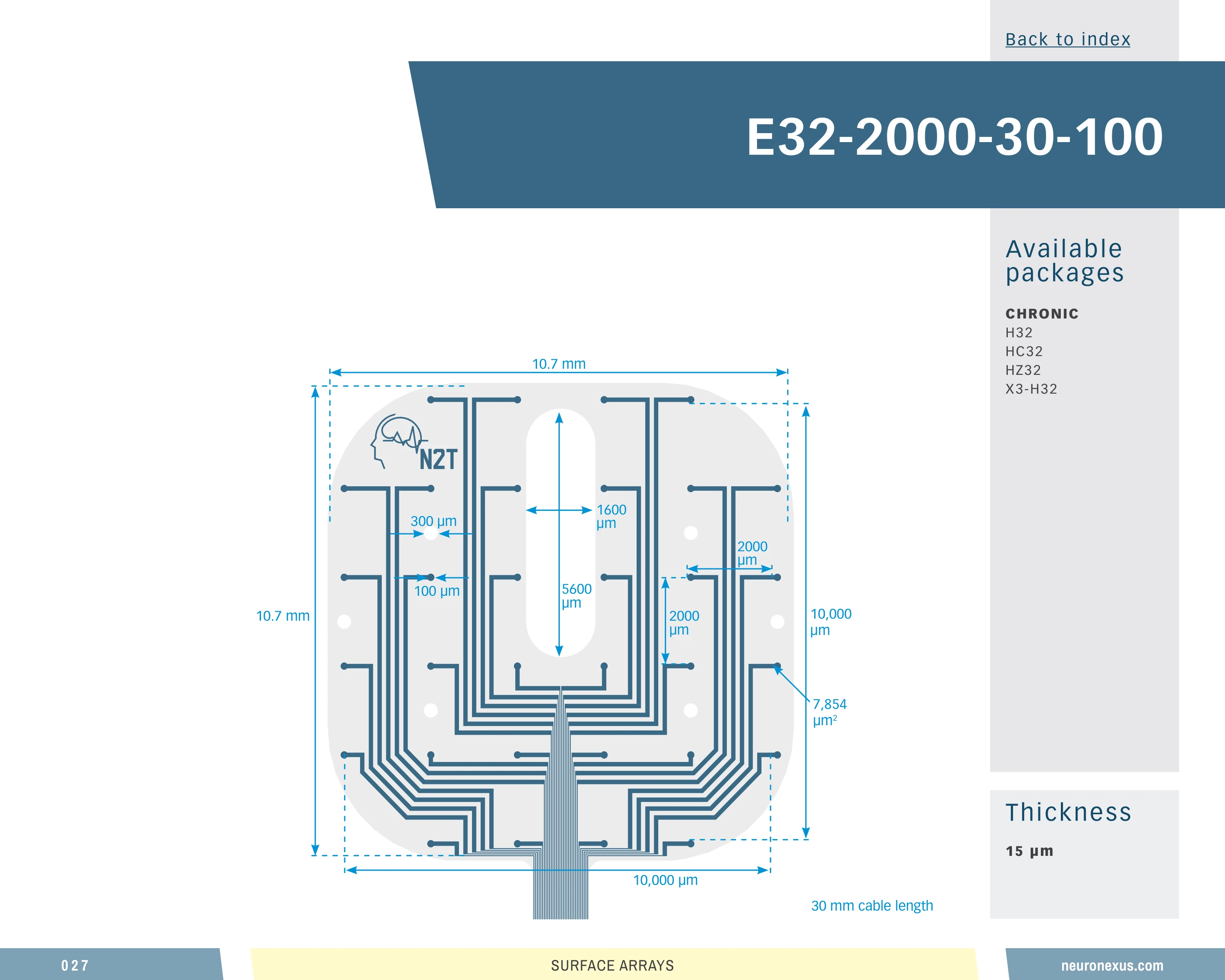

32-site ECoG grid, 100 µm sites, 10.1 × 10.1 mm

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance. Among the 55 grid designs in the design space it is in the upper quartile: 32 sites (a common choice — 16 of 55), a 10 mm site-array span (80th percentile), 0.31 sites/mm² (31st percentile) and a 56 mm³ neural interface (80th percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. Research use only.

Also known as

e32_2000_30_100

ECoG 32-Channel GridSKU grd_cog--e32_2000_cl30_100

10 specs

Channels32
Site layoutGrid
Site area7,854 µm²
Span10099 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm
Neural interface volume56.171 mm³ (higher than 80% of 55 designs)
Site coverage density0.3 sites/mm² (higher than 31% of 55 designs)
Brain coverage density0.6 sites/mm³ (higher than 31% of 55 designs)
ECoG 32-Channel GridSKU grd_cog--e32_2000_cl30_100

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

6 options

Configure

Compatible Package
All
H32 — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
X3_H32 — 32-ch Molex

Your selection

32-channel thin-film ECoG grid — H32, 12 μm
H32
Compatible Package: H32 — 32-ch Omnetics
SKUgrd_cog--e32_2000_cl30_100.12um.h32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

6 of 6
ECoG 32-Channel GridSKU grd_cog--e32_2000_cl30_100

Loading the compatible products…

ECoG 32-Channel GridSKU grd_cog--e32_2000_cl30_100

9 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
3256

Top 33% of catalog designs

Sites 32 — higher than 67% of catalog designs and 60% of its family
Span, x
10.1 mm
0.1 mm36.5 mm

Top 25% of catalog designs

Span, x 10.1 mm — higher than 75% of catalog designs and 89% of its family
Span, y
10.1 mm
0.26 mm79 mm

Top 20% of catalog designs

Span, y 10.1 mm — higher than 80% of catalog designs and 83% of its family
Site pitch, x
2 µm
0.15 µm6 µm

Top 25% of catalog designs

Site pitch, x 2 µm — higher than 75% of catalog designs and 88% of its family
Site pitch, y
2 µm
0.08 µm5.59 µm

Top 22% of catalog designs

Site pitch, y 2 µm — higher than 78% of catalog designs and 88% of its family
Site outline area
102 mm²
0.026 mm²970.7 mm²

Top 20% of catalog designs

Site outline area 102 mm² — higher than 80% of catalog designs and 86% of its family
Neural interface volume
56.17 mm³
0.228 mm³501.1 mm³

Top 20% of catalog designs

Neural interface volume 56.17 mm³ — higher than 80% of catalog designs and 86% of its family
Site coverage density
0.314 sites/mm²
0.066 sites/mm²134.5 sites/mm²

Top 69% of catalog designs

Site coverage density 0.314 sites/mm² — higher than 31% of catalog designs and 14% of its family
Brain coverage density
0.57 sites/mm³
0.128 sites/mm³61.01 sites/mm³

Top 69% of catalog designs

Brain coverage density 0.57 sites/mm³ — higher than 31% of catalog designs and 14% of its family
ECoG 32-Channel GridSKU grd_cog--e32_2000_cl30_100

5 notes · Epidural or subdural — the decision that shapes the experiment · What holds the array against the brain · Coverage and site layout …

ECoG 32-Channel GridSKU grd_cog--e32_2000_cl30_100

15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

ECoG 32-Channel GridSKU grd_cog--e32_2000_cl30_100

Cited in 74 publications (product line)
