ECoG 32-Channel Grid
32-site ECoG grid, 30 µm sites
A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance, on a long cable for routing to the connector. Among the 55 grid designs in the design space it sits at the bottom: 32 sites (a common choice — 16 of 55), a 0.78 mm site-array span (9th percentile), 23 sites/mm² (89th percentile) and a 1.46 mm³ neural interface (9th percentile).
Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 25 mm cable. Research use only.
e32_250_25_30_pml · e32_250_25_30
11 specs
| Channels | 32 |
|---|---|
| Site layout | Grid |
| Site area | 707 µm² |
| Span | 780 µm |
| Substrate | Polyimide |
| Site material | Platinum |
| Thickness | 12 µm |

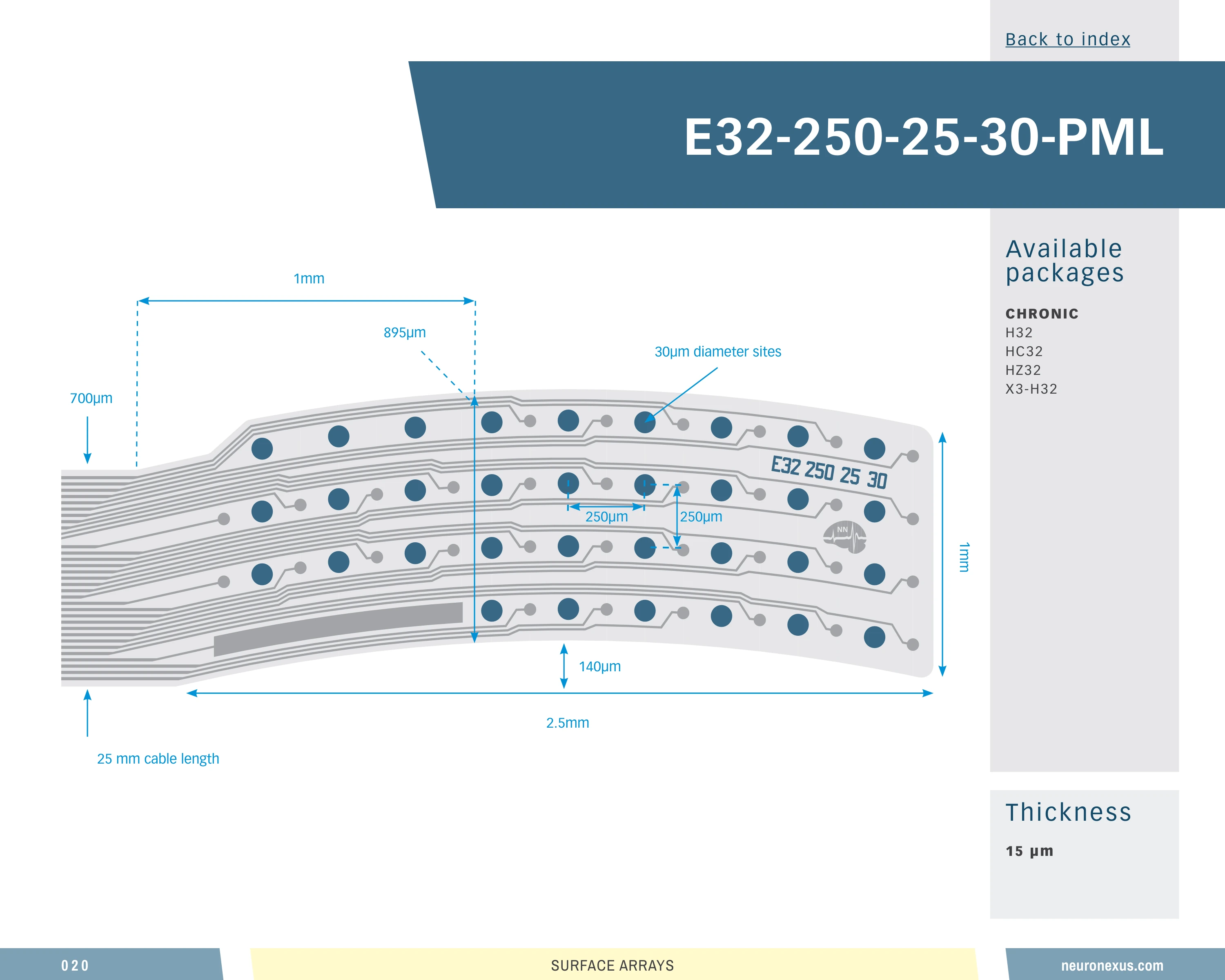

| Site geometry | Estimated from the catalog drawing and similar designs |
| Neural interface volume | 1.459 mm³ (higher than 9% of 55 designs) |
| Site coverage density | 23.0 sites/mm² (higher than 89% of 55 designs) |
| Brain coverage density | 21.9 sites/mm³ (higher than 91% of 55 designs) |
