ECoG 32-Channel Grid

32Sites
12µmThickness
36.5mmWidth
196,350µm²Site Area
Part no.E32-3000-6000-cl30-500
Contents

32-site ECoG grid, 500 µm sites

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying large sites that average a broad patch at low impedance, on a long cable for routing to the connector. Among the 55 grid designs in the design space it is in the upper quartile: 32 sites (a common choice — 16 of 55), a 12 mm site-array span (85th percentile), 0.07 sites/mm² (4th percentile) and a 240 mm³ neural interface (96th percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 30 mm cable. Research use only.

Also known as

e32_3000_6000_30_500

ECoG 32-Channel GridSKU grd_cog--e32_3000_6000_cl30_500

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

11 specs

Channels32
Site layoutGrid
Site area196,350 µm²
Span12500 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm

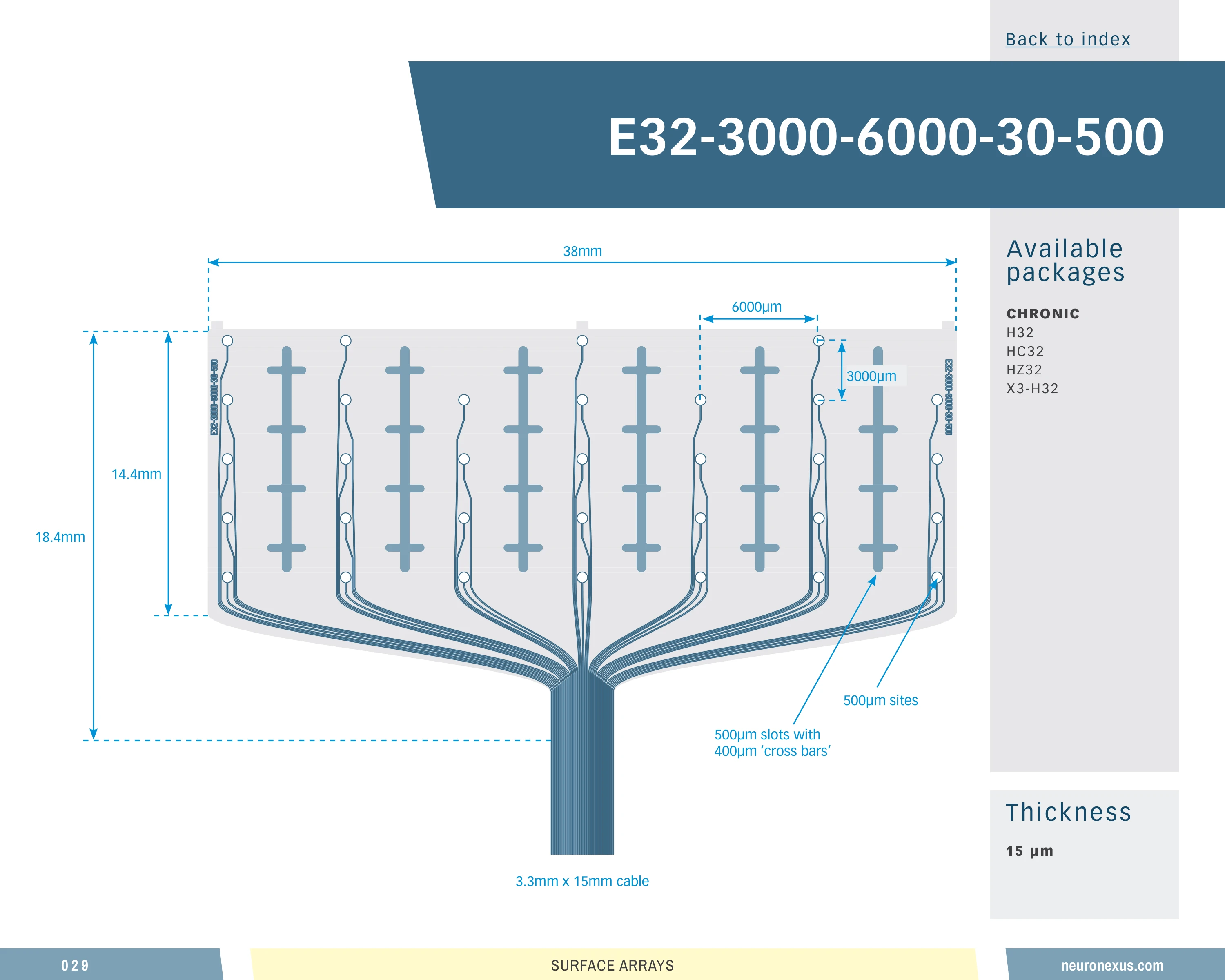

Site geometryEstimated from the catalog drawing and similar designs
Neural interface volume240.500 mm³ (higher than 96% of 55 designs)
Site coverage density0.1 sites/mm² (higher than 4% of 55 designs)
Brain coverage density0.1 sites/mm³ (higher than 4% of 55 designs)
ECoG 32-Channel GridSKU grd_cog--e32_3000_6000_cl30_500
