ECoG 32-Channel Grid

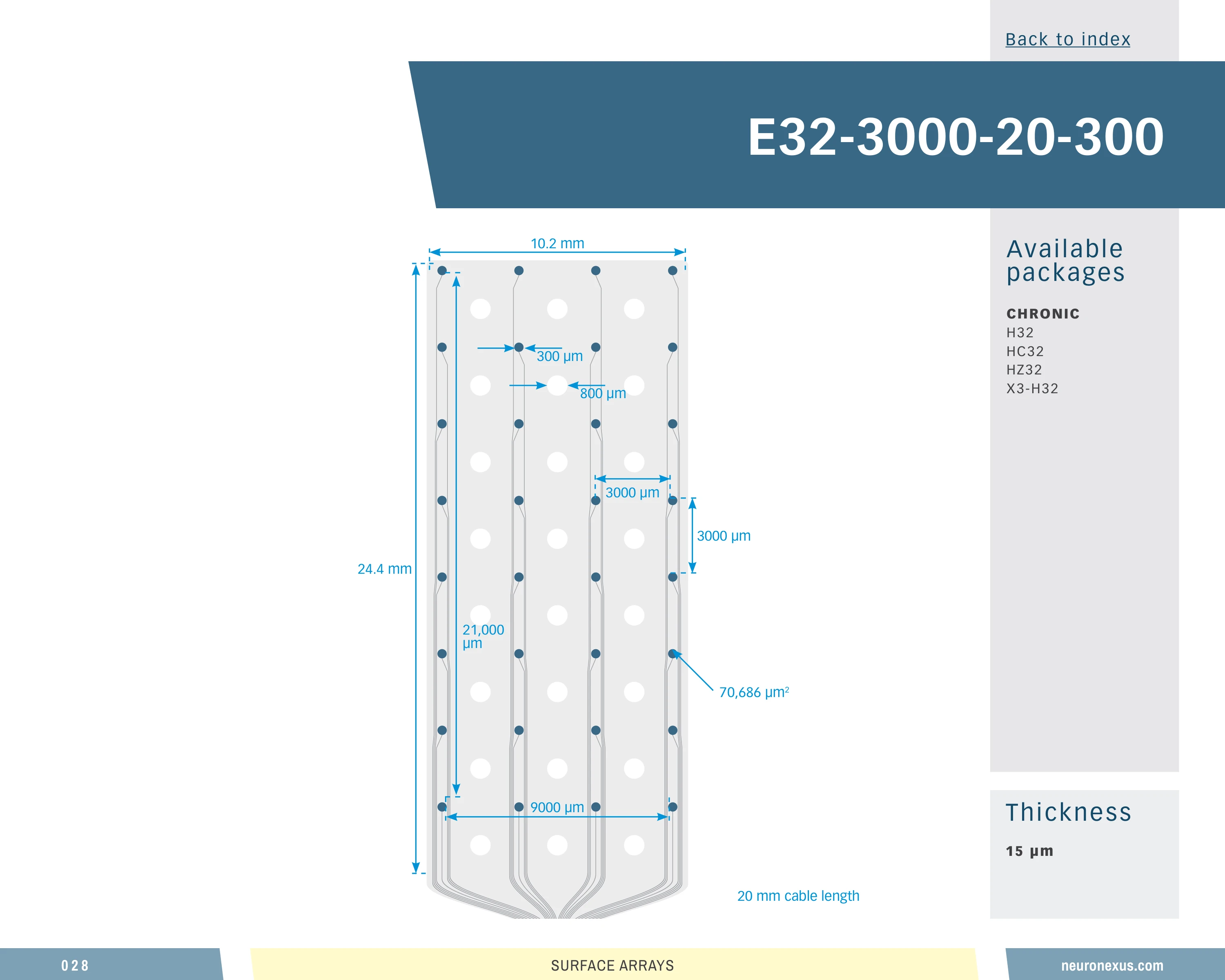

32-site ECoG grid, 300 µm sites
A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying mid-sized sites that trade local detail for signal. Among the 55 grid designs in the design space it is in the upper quartile: 32 sites (a common choice — 16 of 55), a 21 mm site-array span (93rd percentile), 0.16 sites/mm² (13th percentile) and a 107 mm³ neural interface (87th percentile).
Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. Research use only.
e32_3000_20_300
10 specs
| Channels | 32 |
|---|---|
| Site layout | Grid |
| Site area | 70,686 µm² |
| Span | 21298 µm |
| Substrate | Polyimide |
| Site material | Platinum |
| Thickness | 12 µm |
| Neural interface volume | 106.776 mm³ (higher than 87% of 55 designs) |
| Site coverage density | 0.2 sites/mm² (higher than 13% of 55 designs) |
| Brain coverage density | 0.3 sites/mm³ (higher than 15% of 55 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
6 options
Configure
Your selection
32-channel thin-film ECoG grid — H32, 12 μm
H32Options
6 of 6H32 — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
X3_H32 — 32-ch Molex
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
Loading the compatible products…
9 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 33% of catalog designs
Sites 32 — higher than 67% of catalog designs and 60% of its familyTop 29% of catalog designs
Span, x 9.3 mm — higher than 71% of catalog designs and 83% of its familyTop 7% of catalog designs
Span, y 21.3 mm — higher than 93% of catalog designs and 97% of its familyTop 9% of catalog designs
Site pitch, x 3 µm — higher than 91% of catalog designs and 97% of its familyTop 9% of catalog designs · largest in its family
Site pitch, y 3 µm — higher than 91% of catalog designs and 100% of its family (the largest in its family, 34 designs)Top 13% of catalog designs
Site outline area 198 mm² — higher than 87% of catalog designs and 91% of its familyTop 13% of catalog designs
Neural interface volume 106.8 mm³ — higher than 87% of catalog designs and 91% of its familyTop 87% of catalog designs
Site coverage density 0.162 sites/mm² — higher than 13% of catalog designs and 6% of its familyTop 85% of catalog designs
Brain coverage density 0.3 sites/mm³ — higher than 15% of catalog designs and 6% of its family5 notes · Epidural or subdural — the decision that shapes the experiment · What holds the array against the brain · Coverage and site layout …
15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
Cited in 74 publications (product line)
