ECoG 32-Channel Grid
Polyimide substrate that follows the cortical surface — epidural or subdural, 4 to 256 sites

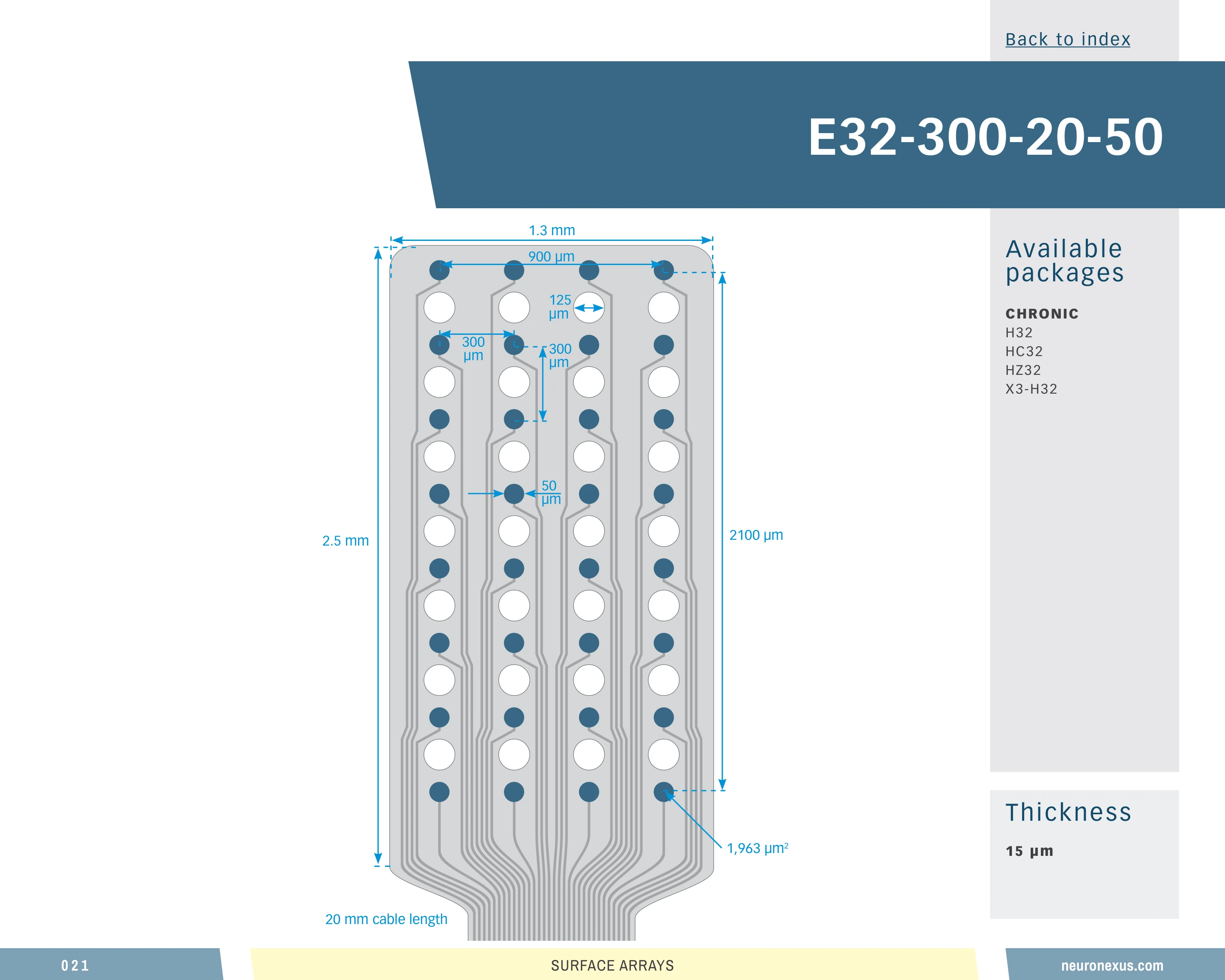

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance, on a short cable for a compact head end. Among the 56 grid designs in the design space it is in the lower quartile: 32 sites (a common choice — 16 of 55), a 2.15 mm site-array span (23rd percentile), 16 sites/mm² (84th percentile) and a 1.92 mm³ neural interface (12th percentile).
Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 20 mm cable. Research use only.
SKU grd_cog--e32_300_cl20_50 · Grids in the webstore
Specifications
| Channels | 32 |
|---|---|
| Site layout | Grid |
| Site area | 1,963 µm² |
| Span | 2150 µm |
| Substrate | Polyimide |
| Site material | Platinum |
| Thickness | 12 µm |
| Site geometry | Estimated from the catalog drawing and similar designs |
| Neural interface volume | 1.921 mm³ (higher than 12% of 56 designs) |
| Site coverage density | 15.7 sites/mm² (higher than 84% of 56 designs) |
| Brain coverage density | 16.7 sites/mm³ (higher than 86% of 56 designs) |
