ECoG 64-Channel Grid

64Sites
12µmThickness
7.2mmWidth
31,416µm²Site Area
Part no.E64-1000-cl50-200
Contents

64-site ECoG grid, 200 µm sites, 7.2 × 7.2 mm

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying mid-sized sites that trade local detail for signal, on a long cable for routing to the connector. Among the 55 grid designs in the design space it is mid-range: 64 sites (a common choice — 9 of 55), a 7.2 mm site-array span (60th percentile), 1.23 sites/mm² (49th percentile) and a 30 mm³ neural interface (56th percentile).

Orders as a grid-plus-package assembly, in 5 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 50 mm cable. Research use only.

Also known as

e64_1000_50_200

ECoG 64-Channel GridSKU grd_cog--e64_1000_cl50_200

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

11 specs

Channels64
Site layoutGrid
Site area31,416 µm²
Span7200 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm

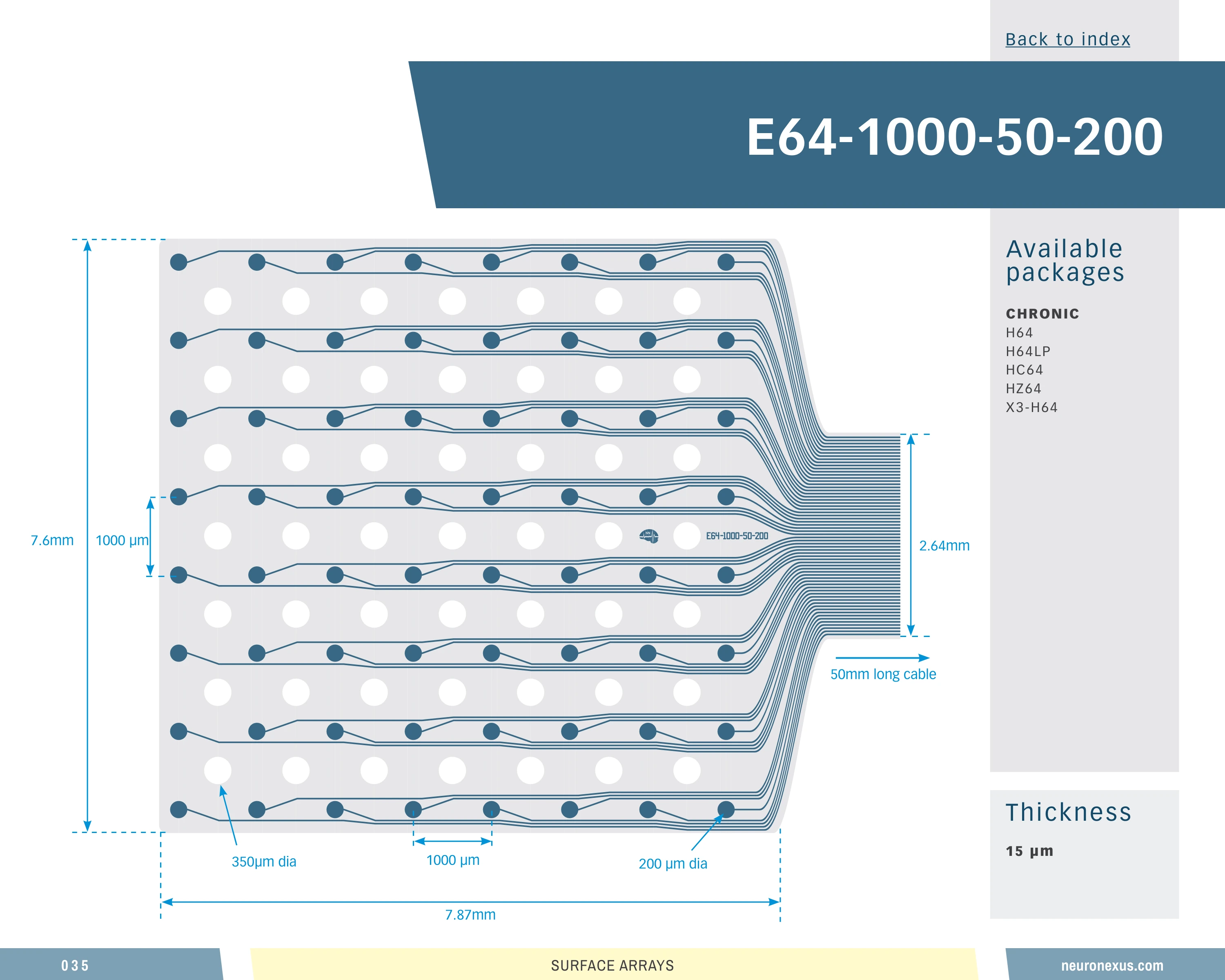

Site geometryEstimated from the catalog drawing and similar designs
Neural interface volume29.645 mm³ (higher than 56% of 55 designs)
Site coverage density1.2 sites/mm² (higher than 49% of 55 designs)
Brain coverage density2.2 sites/mm³ (higher than 55% of 55 designs)
ECoG 64-Channel GridSKU grd_cog--e64_1000_cl50_200
