ECoG 64-Channel Grid
Polyimide substrate that follows the cortical surface — epidural or subdural, 4 to 256 sites
A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying mid-sized sites that trade local detail for signal, on a long cable for routing to the connector. Among the 56 grid designs in the design space it sits at the top: 64 sites (a common choice — 9 of 55), a 18 mm site-array span (91st percentile), 0.2 sites/mm² (18th percentile) and a 166 mm³ neural interface (91st percentile).
Orders as a grid-plus-package assembly, in 5 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 50 mm cable. Research use only.
SKU grd_cog--e64_2500_cl50_200 · Grids in the webstore
Specifications
| Channels | 64 |
|---|---|
| Site layout | Grid |
| Site area | 31,416 µm² |
| Span | 17700 µm |
| Substrate | Polyimide |
| Site material | Platinum |
| Thickness | 12 µm |

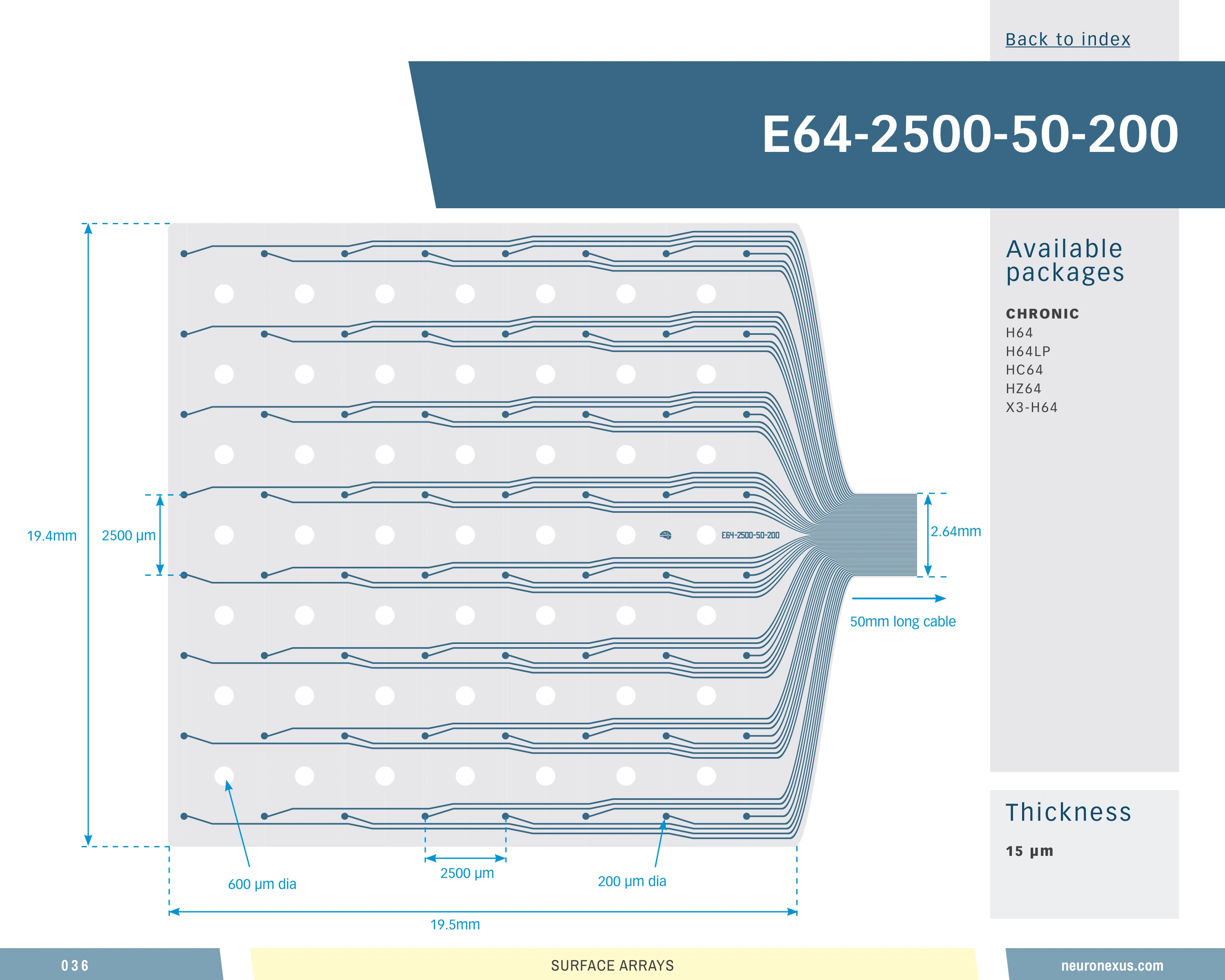

| Site geometry | Estimated from the catalog drawing and similar designs |
| Neural interface volume | 165.620 mm³ (higher than 91% of 56 designs) |
| Site coverage density | 0.2 sites/mm² (higher than 18% of 56 designs) |
| Brain coverage density | 0.4 sites/mm³ (higher than 18% of 56 designs) |
