ECoG 64-Channel Grid
64-site ECoG grid, 50 µm sites
A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance, on a long cable for routing to the connector. Among the 55 grid designs in the design space it is in the upper quartile: 64 sites (a common choice — 9 of 55), a 12 mm site-array span (84th percentile), 9.35 sites/mm² (82nd percentile) and a 6.8 mm³ neural interface (33rd percentile).
Orders as a grid-plus-package assembly, in 5 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 40 mm cable. Research use only.
e64_400_500_50_50
11 specs
| Channels | 64 |
|---|---|
| Site layout | Grid |
| Site area | 1,963 µm² |
| Span | 12450 µm |
| Substrate | Polyimide |
| Site material | Platinum |
| Thickness | 12 µm |

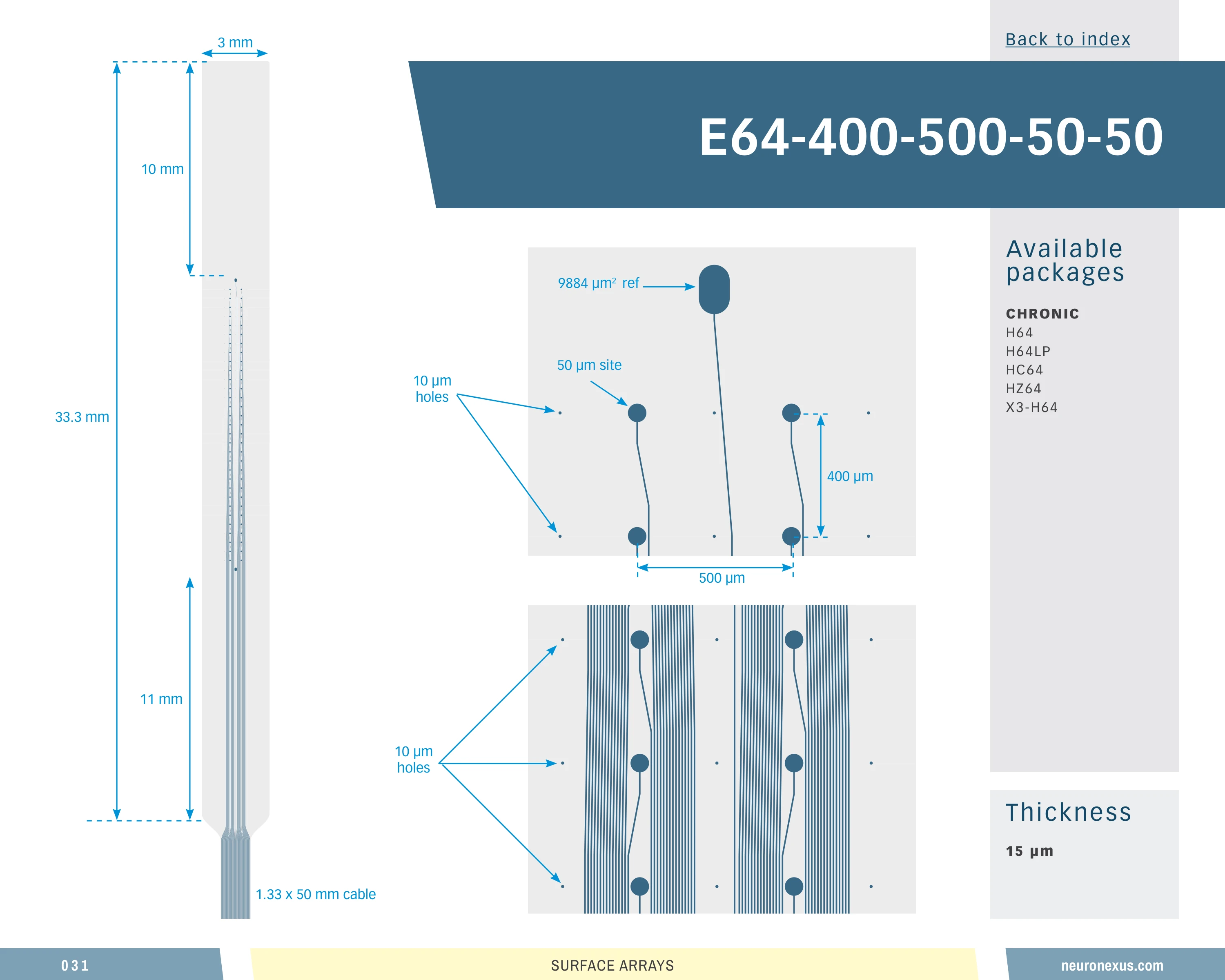

| Site geometry | Estimated from the catalog drawing and similar designs |
| Neural interface volume | 6.799 mm³ (higher than 33% of 55 designs) |
| Site coverage density | 9.3 sites/mm² (higher than 82% of 55 designs) |
| Brain coverage density | 9.4 sites/mm³ (higher than 80% of 55 designs) |
