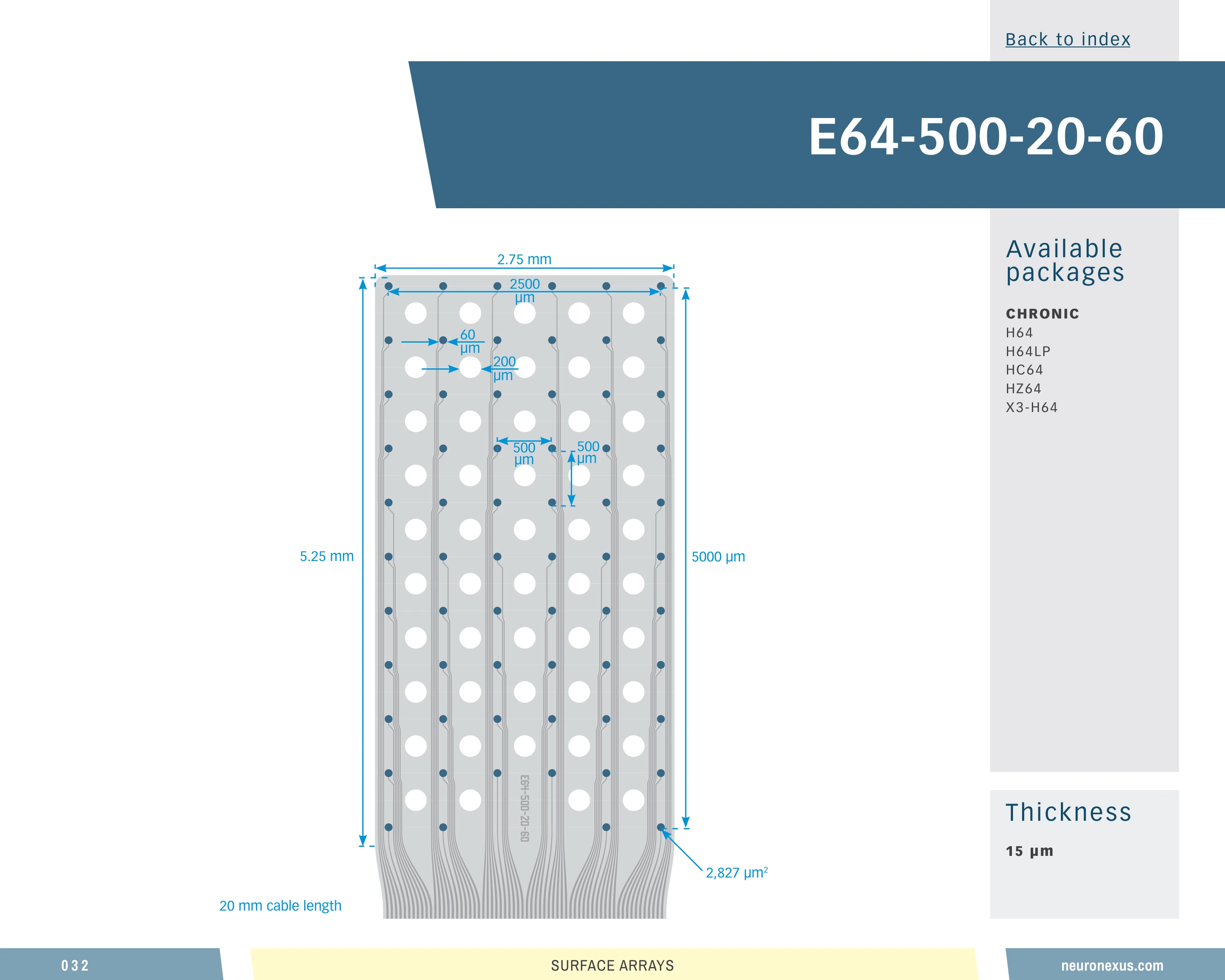

ECoG 64-Channel Grid
Polyimide substrate that follows the cortical surface — epidural or subdural, 4 to 256 sites
A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance. Among the 56 grid designs in the design space it is mid-range: 64 sites (a common choice — 9 of 55), a 2.55 mm site-array span (29th percentile), 4.97 sites/mm² (70th percentile) and a 8.46 mm³ neural interface (38th percentile).
Orders as a grid-plus-package assembly, in 5 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. Research use only.
SKU grd_cog--e64_500_cl20_60 · Grids in the webstore
Specifications
| Channels | 64 |
|---|---|
| Site layout | Grid |
| Site area | 2,827 µm² |
| Span | 2550 µm |
| Substrate | Polyimide |
| Site material | Platinum |
| Thickness | 12 µm |
| Neural interface volume | 8.462 mm³ (higher than 38% of 56 designs) |
| Site coverage density | 5.0 sites/mm² (higher than 70% of 56 designs) |
| Brain coverage density | 7.6 sites/mm³ (higher than 75% of 56 designs) |
