Grids · ECoG Series

ECoG 64-Channel Grid

64Sites
12µmThickness
4.6mmWidth
7,854µm²Site Area
Part no.E64-500-cl25-100
Contents

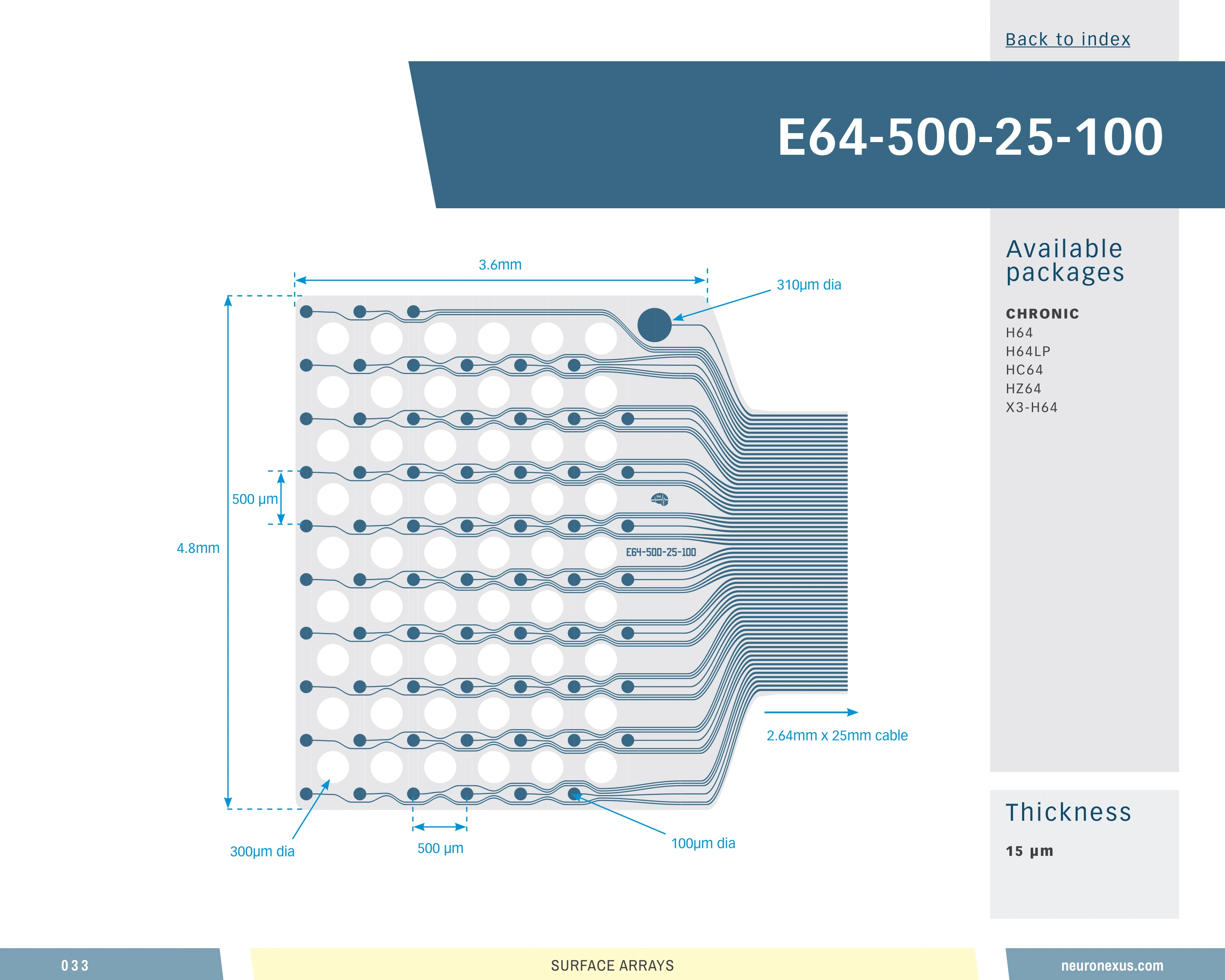

64-site ECoG grid, 100 µm sites

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying small sites that read a local patch at high impedance, on a long cable for routing to the connector. Among the 55 grid designs in the design space it is mid-range: 65 sites (85th percentile), a 3.45 mm site-array span (42nd percentile), 4.1 sites/mm² (67th percentile) and a 10 mm³ neural interface (40th percentile).

Orders as a grid-plus-package assembly, in 5 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 25 mm cable. Research use only.

Also known as

e64_500_25_100

ECoG 64-Channel GridSKU grd_cog--e64_500_cl25_100

10 specs

Channels64
Site layoutGrid
Site area7,854 µm²
Span3450 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm
Neural interface volume10.072 mm³ (higher than 40% of 55 designs)
Site coverage density4.1 sites/mm² (higher than 67% of 55 designs)
Brain coverage density6.5 sites/mm³ (higher than 67% of 55 designs)
ECoG 64-Channel GridSKU grd_cog--e64_500_cl25_100

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
H64 — 64-ch Omnetics
H64LP — 64-ch Omnetics
HC64 — 64-ch Omnetics
HZ64 — 64-ch Hirose
X3_H64 — 64-ch Molex

Your selection

64-channel thin-film ECoG grid — H64, 12 μm
H64
Compatible Package: H64 — 64-ch Omnetics
SKUgrd_cog--e64_500_cl25_100.12um.h64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
ECoG 64-Channel GridSKU grd_cog--e64_500_cl25_100

Loading the compatible products…

ECoG 64-Channel GridSKU grd_cog--e64_500_cl25_100

9 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
65
3256

Top 15% of catalog designs

Sites 65 — higher than 85% of catalog designs and 80% of its family
Span, x
4.6 mm
0.1 mm36.5 mm

Top 60% of catalog designs

Span, x 4.6 mm — higher than 40% of catalog designs and 51% of its family
Span, y
3.45 mm
0.26 mm79 mm

Top 58% of catalog designs

Span, y 3.45 mm — higher than 42% of catalog designs and 60% of its family
Site pitch, x
0.5 µm
0.15 µm6 µm

Top 66% of catalog designs

Site pitch, x 0.5 µm — higher than 34% of catalog designs and 53% of its family
Site pitch, y
0.5 µm
0.08 µm5.59 µm

Top 65% of catalog designs

Site pitch, y 0.5 µm — higher than 35% of catalog designs and 50% of its family
Site outline area
15.87 mm²
0.026 mm²970.7 mm²

Top 60% of catalog designs

Site outline area 15.87 mm² — higher than 40% of catalog designs and 60% of its family
Neural interface volume
10.07 mm³
0.228 mm³501.1 mm³

Top 60% of catalog designs

Neural interface volume 10.07 mm³ — higher than 40% of catalog designs and 60% of its family
Site coverage density
4.1 sites/mm²
0.066 sites/mm²134.5 sites/mm²

Top 33% of catalog designs

Site coverage density 4.1 sites/mm² — higher than 67% of catalog designs and 51% of its family
Brain coverage density
6.45 sites/mm³
0.128 sites/mm³61.01 sites/mm³

Top 33% of catalog designs

Brain coverage density 6.45 sites/mm³ — higher than 67% of catalog designs and 51% of its family
ECoG 64-Channel GridSKU grd_cog--e64_500_cl25_100

5 notes · Epidural or subdural — the decision that shapes the experiment · What holds the array against the brain · Coverage and site layout …

ECoG 64-Channel GridSKU grd_cog--e64_500_cl25_100

15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

ECoG 64-Channel GridSKU grd_cog--e64_500_cl25_100

Cited in 74 publications (product line)
