ECoG 32-Channel Grid
Polyimide substrate that follows the cortical surface — epidural or subdural, 4 to 256 sites
A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying mid-sized sites that trade local detail for signal, on a long cable for routing to the connector. Among the 56 grid designs in the design space it is mid-range: 32 sites (a common choice — 16 of 55), a 8.2 mm site-array span (64th percentile), 0.48 sites/mm² (34th percentile) and a 38 mm³ neural interface (68th percentile).
Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 55 mm cable. Research use only.
SKU grd_cog--em32_2000_cl55_200 · Grids in the webstore
Specifications
| Channels | 32 |
|---|---|
| Site layout | Grid |
| Site area | 31,416 µm² |
| Span | 8200 µm |
| Substrate | Polyimide |
| Site material | Platinum |
| Thickness | 12 µm |

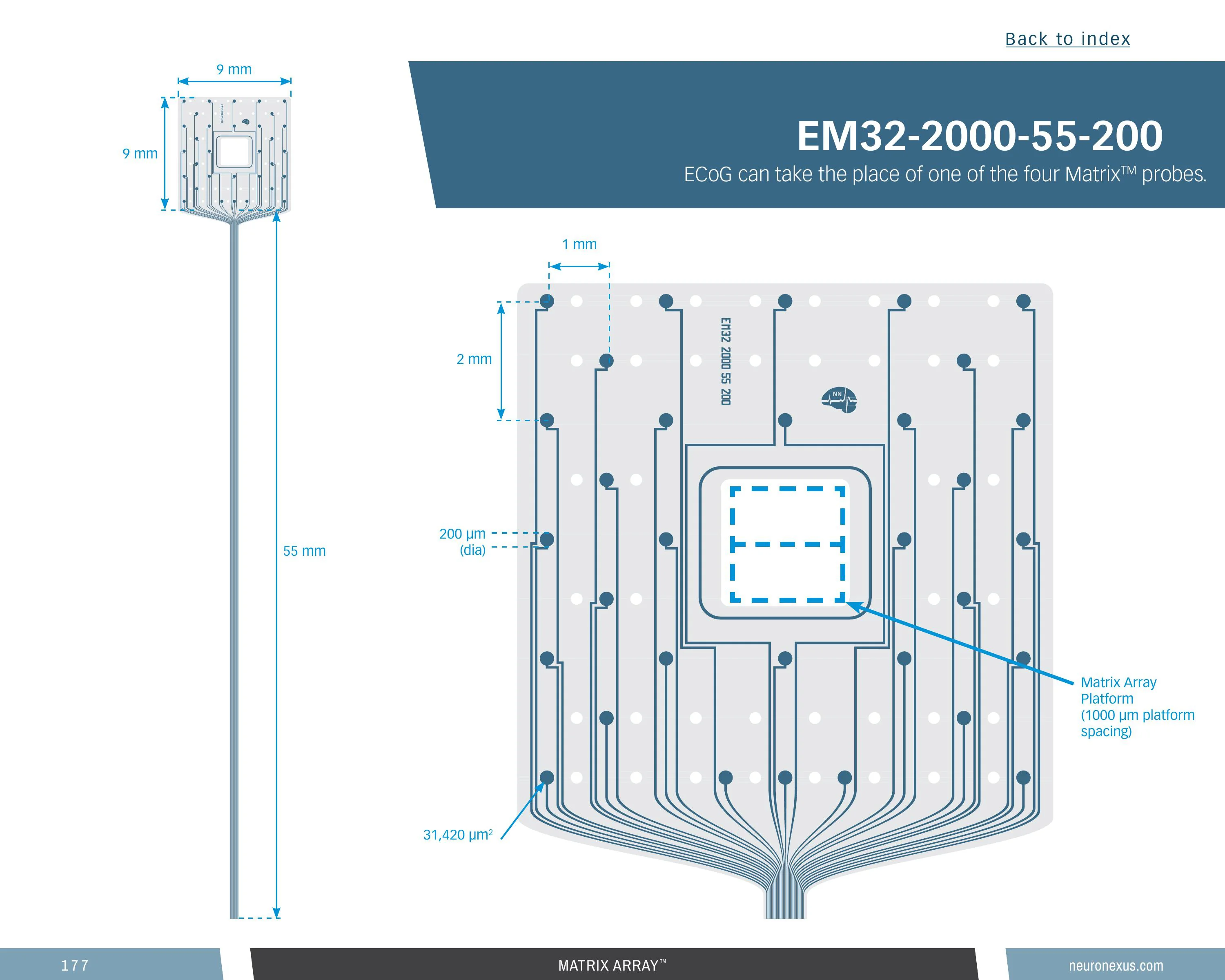

| Site geometry | Estimated from the catalog drawing and similar designs |
| Neural interface volume | 37.845 mm³ (higher than 68% of 56 designs) |
| Site coverage density | 0.5 sites/mm² (higher than 34% of 56 designs) |
| Brain coverage density | 0.8 sites/mm³ (higher than 36% of 56 designs) |
