ECoG 32-Channel Grid
Polyimide substrate that follows the cortical surface — epidural or subdural, 4 to 256 sites
A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying mid-sized sites that trade local detail for signal, on a long cable for routing to the connector. Among the 56 grid designs in the design space it is in the lower quartile: 32 sites (a common choice — 16 of 55), a 2 mm site-array span (21st percentile), 5.33 sites/mm² (71st percentile) and a 4.38 mm³ neural interface (23rd percentile).
Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 58 mm cable. Research use only.
SKU grd_cog--em32_400_600_cl58_200 · Grids in the webstore
Specifications
| Channels | 32 |
|---|---|
| Site layout | Grid |
| Site area | 31,416 µm² |
| Span | 2000 µm |
| Substrate | Polyimide |
| Site material | Platinum |
| Thickness | 12 µm |

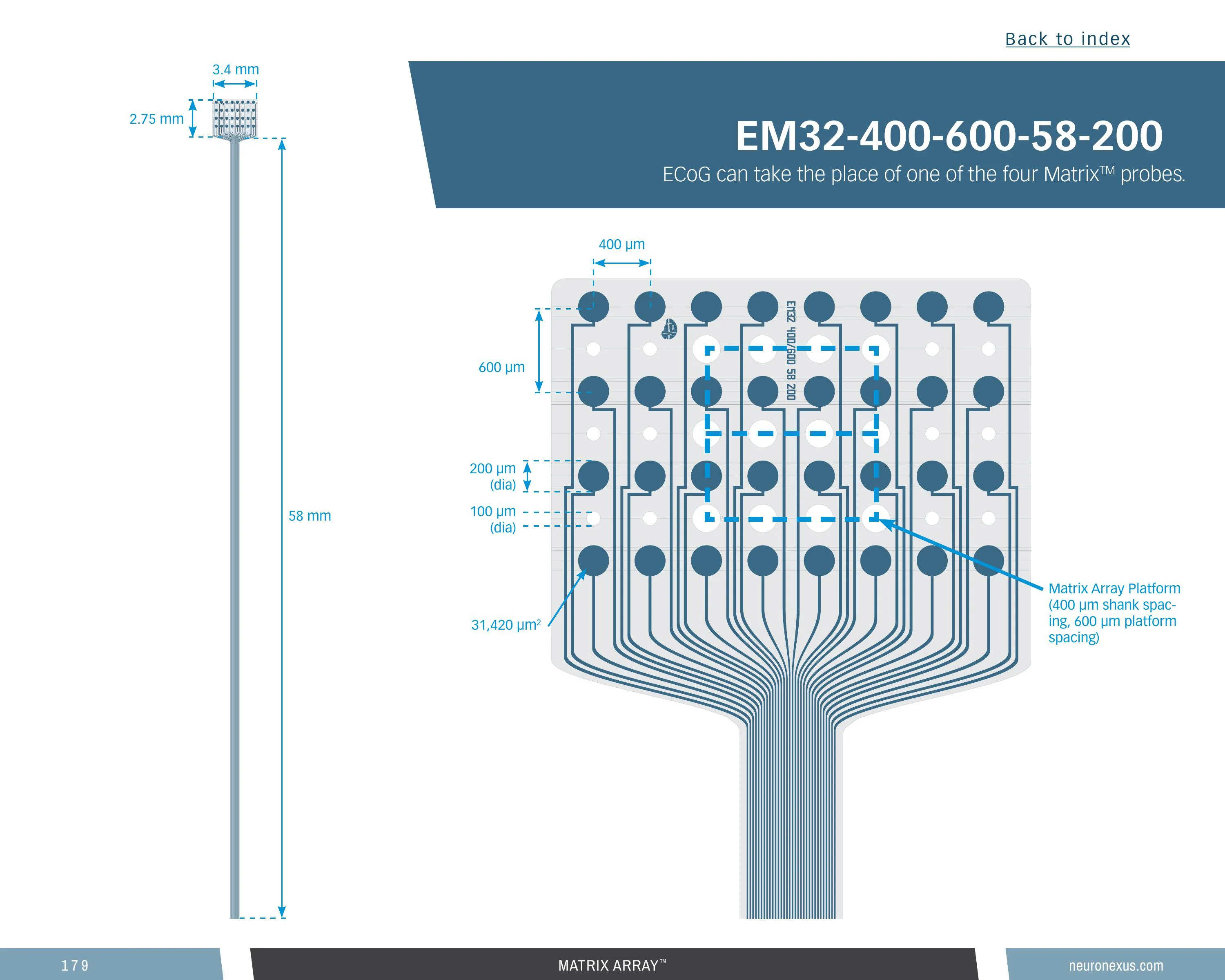

| Site geometry | Estimated from the catalog drawing and similar designs |
| Neural interface volume | 4.375 mm³ (higher than 23% of 56 designs) |
| Site coverage density | 5.3 sites/mm² (higher than 71% of 56 designs) |
| Brain coverage density | 7.3 sites/mm³ (higher than 71% of 56 designs) |
