Neural Probes · A-Series (Isomura)

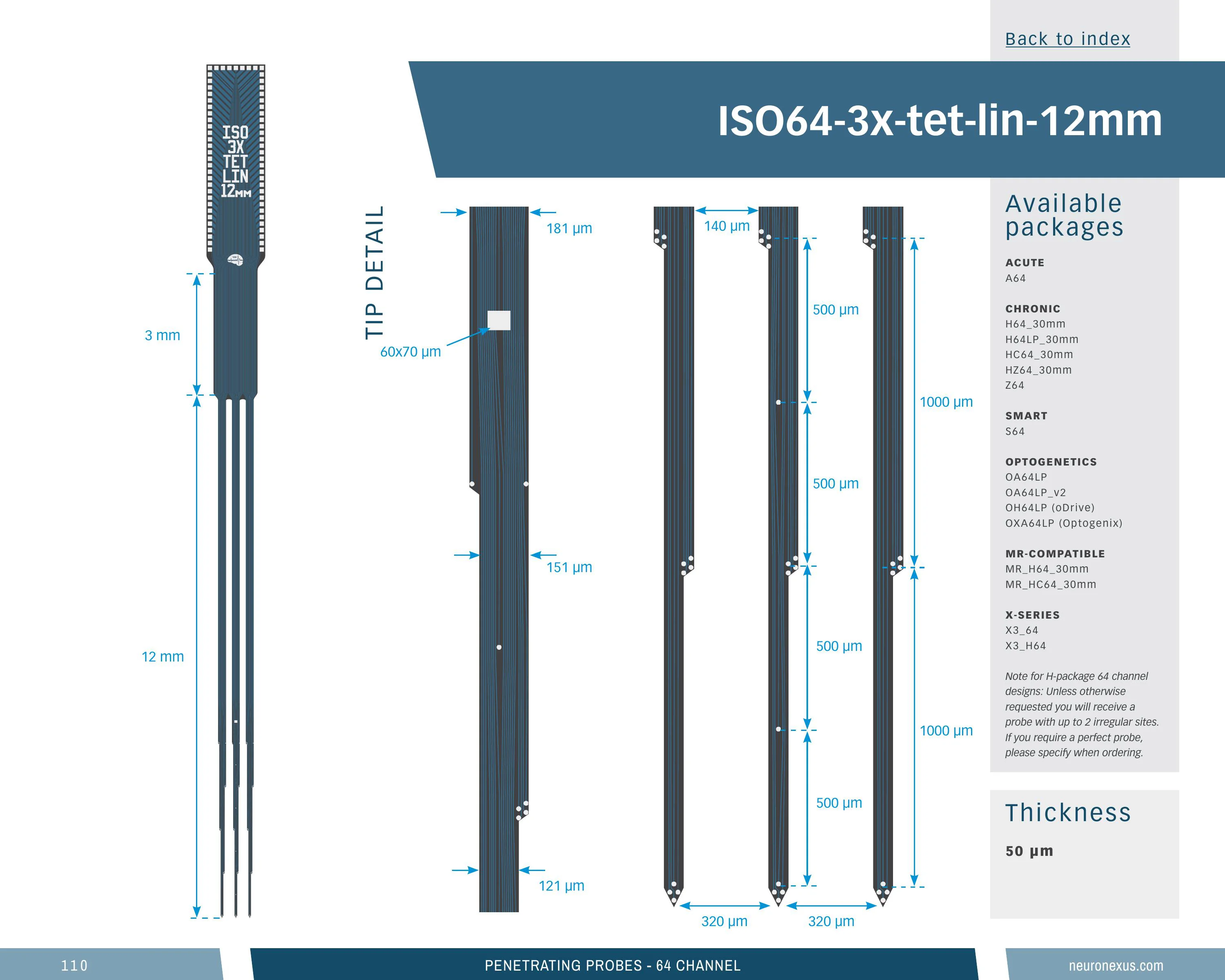

Tetrode/Linear 3-Shank 64-Channel Probe, 12 mm

64Sites
3Shanks
12mmShank Length
19.51µmSite Pitch
Part no.Iso64-3X-tet-Lin-12mm
Contents

64-site Isomura probe, 3 shanks

Three long shanks side by side, spread for lateral coverage across columns, with tetrode groups along a linear run, isolation at set depths with a profile between. Among the 369 probe designs in the design space it sits at the top: 64 sites (a common choice — 65 of 369), 12 mm shanks (93rd percentile of the 366 measured), a 4.06 mm-deep site array (95th percentile), 19 sites/mm² (7th percentile) and a 3.01 mm³ neural interface (95th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 22 package configurations, 4 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

iso64_3x_tet_lin_12mm

Tetrode/Linear 3-Shank 64-Channel Probe, 12 mmSKU prb_ais--iso64_3x_tet_lin_12mm

14 specs

Channels64
Shanks3
Shank length12 mm
Shank separation320 µm
Site layoutTetrode/linear
Site area172 µm²
Site pitch19.513 µm
Vertical span4062 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume3.011 mm³ (higher than 95% of 369 designs)
Site coverage density19.2 sites/mm² (higher than 7% of 369 designs)
Brain coverage density21.3 sites/mm³ (higher than 14% of 369 designs)
Tetrode/Linear 3-Shank 64-Channel Probe, 12 mmSKU prb_ais--iso64_3x_tet_lin_12mm

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

22 options

Configure

Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 — 64-ch Molex
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
H64 (30 mm cable) — 64-ch Omnetics
H64LP — 64-ch Omnetics
HC64 — 64-ch Omnetics
HZ64 — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel 3-shank silicon probe, 12 mm — 50 μm, A64
A64
Compatible Package: A64 — 64-ch Samtec
SKUprb_ais--iso64_3x_tet_lin_12mm.50um.a64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

22 of 22
Tetrode/Linear 3-Shank 64-Channel Probe, 12 mmSKU prb_ais--iso64_3x_tet_lin_12mm

Loading the compatible products…

Tetrode/Linear 3-Shank 64-Channel Probe, 12 mmSKU prb_ais--iso64_3x_tet_lin_12mm

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 90% of its family
Shanks
3
116

Top 45% of catalog designs

Shanks 3 — higher than 55% of catalog designs and 60% of its family
Shank length
12 mm
1 mm60 mm

Top 7% of catalog designs · largest in its family

Shank length 12 mm — higher than 93% of catalog designs and 100% of its family (the largest in its family, 7 designs)
Shank separation
0.32 mm
0.05 mm1.8 mm

Top 23% of catalog designs · largest in its family

Shank separation 0.32 mm — higher than 77% of catalog designs and 100% of its family (the largest in its family, 8 designs)
Maximum site depth
11.99 mm
0.972 mm51.29 mm

Top 7% of catalog designs · largest in its family

Maximum site depth 11.99 mm — higher than 93% of catalog designs and 100% of its family (the largest in its family, 7 designs)
Minimum site depth
7.92 mm
0.067 mm44.74 mm

Top 25% of catalog designs

Minimum site depth 7.92 mm — higher than 75% of catalog designs and 71% of its family
Span, x
0.82 mm
0.01 mm6.03 mm

Top 27% of catalog designs

Span, x 0.82 mm — higher than 73% of catalog designs and 60% of its family
Span, y
4.06 mm
0.01 mm10.55 mm

Top 5% of catalog designs · largest in its family

Span, y 4.06 mm — higher than 95% of catalog designs and 100% of its family (the largest in its family, 10 designs)
Site pitch, x
0.017 µm
0.012 µm0.57 µm

Top 76% of catalog designs · largest in its family

Site pitch, x 0.017 µm — higher than 24% of catalog designs and 100% of its family (the largest in its family, 10 designs)
Site pitch, y
0.02 µm
0.01 µm1.5 µm

Top 84% of catalog designs

Site pitch, y 0.02 µm — higher than 16% of catalog designs and 60% of its family
Site outline area
3.33 mm²
0.002 mm²28.74 mm²

Top 5% of catalog designs · largest in its family

Site outline area 3.33 mm² — higher than 95% of catalog designs and 100% of its family (the largest in its family, 10 designs)
Neural interface volume
3.01 mm³
0.149 mm³17.19 mm³

Top 5% of catalog designs · largest in its family

Neural interface volume 3.01 mm³ — higher than 95% of catalog designs and 100% of its family (the largest in its family, 10 designs)
Site coverage density
19.21 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 93% of catalog designs

Site coverage density 19.21 sites/mm² — higher than 7% of catalog designs and 10% of its family
Brain coverage density
21.26 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 86% of catalog designs

Brain coverage density 21.26 sites/mm³ — higher than 14% of catalog designs and 30% of its family
