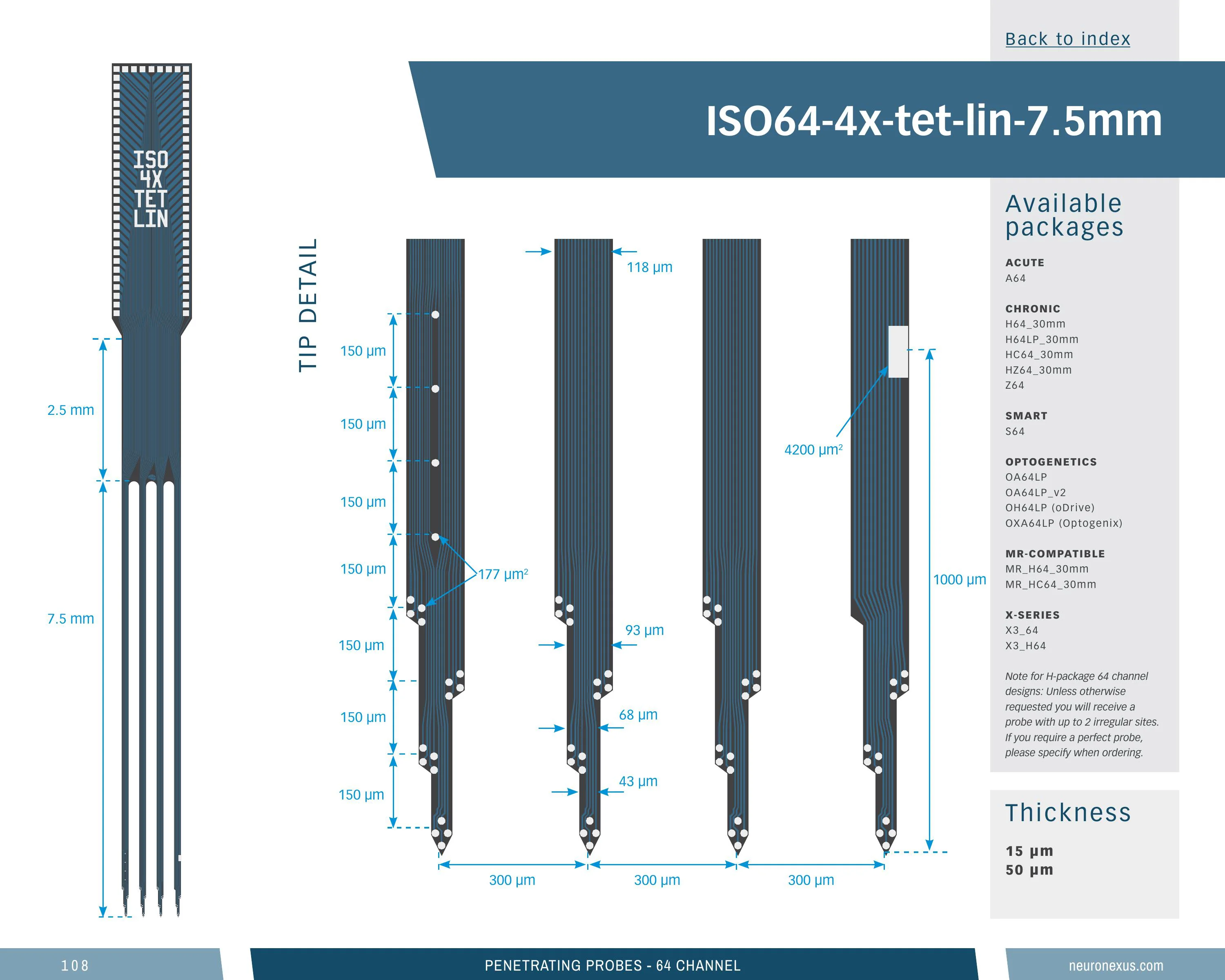

Tetrode/Linear 4-Shank 64-Channel Probe, 7.5 mm
64-site Isomura probe, 4 shanks, 7.5 mm
Four long shanks side by side, spread for lateral coverage across columns, with tetrode groups along a linear run, isolation at set depths with a profile between. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 7.5 mm shanks (65th percentile of the 366 measured), a 1.09 mm-deep site array (56th percentile), 58 sites/mm² (22nd percentile) and a 1.2 mm³ neural interface (79th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.
Orders as a probe-plus-package assembly, in 22 package configurations, 5 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
iso64_4x_tet_lin_7.5mm
14 specs
| Channels | 64 |
|---|---|
| Shanks | 4 |
| Shank length | 7.5 mm |
| Shank separation | 300 µm |
| Site layout | Tetrode/linear |
| Site area | 172 µm² |
| Site pitch | 17.799 µm |
| Vertical span | 1090 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 1.204 mm³ (higher than 79% of 369 designs) |
| Site coverage density | 57.9 sites/mm² (higher than 22% of 369 designs) |
| Brain coverage density | 53.1 sites/mm³ (higher than 60% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
44 options
Configure
Your selection
64-channel 4-shank silicon probe, 7.5 mm — 15 μm, A64
A64Options
44 of 4415 μm · A64 — 64-ch Samtec
50 μm · A64 — 64-ch Samtec
15 μm · AV64 — 64-ch
50 μm · AV64 — 64-ch
15 μm · AVI64 — 64-ch Omnetics
50 μm · AVI64 — 64-ch Omnetics
15 μm · H64 (30 mm cable) — 64-ch Omnetics
50 μm · H64 (30 mm cable) — 64-ch Omnetics
15 μm · MRH64LP_30MM — 64-ch
50 μm · MRH64LP_30MM — 64-ch
15 μm · OA64LP — 64-ch Samtec
50 μm · OA64LP — 64-ch Samtec
15 μm · OA64LP_V2 — 64-ch Samtec
50 μm · OA64LP_V2 — 64-ch Samtec
15 μm · OH64LP — 64-ch Omnetics
50 μm · OH64LP — 64-ch Omnetics
15 μm · OXA64LP — 64-ch Samtec
50 μm · OXA64LP — 64-ch Samtec
15 μm · SEACM64 — 64-ch Samtec
50 μm · SEACM64 — 64-ch Samtec
15 μm · X3_64 — 64-ch Molex
50 μm · X3_64 — 64-ch Molex
15 μm · H64LP — 64-ch Omnetics
50 μm · H64LP — 64-ch Omnetics
15 μm · HC64 — 64-ch Omnetics
50 μm · HC64 — 64-ch Omnetics
15 μm · HZ64 — 64-ch Hirose
50 μm · HZ64 — 64-ch Hirose
15 μm · MRHC64 — 64-ch Omnetics
50 μm · MRHC64 — 64-ch Omnetics
15 μm · AVH64 — 64-ch
50 μm · AVH64 — 64-ch
15 μm · AVIH64 — 64-ch Omnetics
50 μm · AVIH64 — 64-ch Omnetics
15 μm · F128 — 128-ch Omnetics
50 μm · F128 — 128-ch Omnetics
15 μm · FH128 — 128-ch Omnetics
50 μm · FH128 — 128-ch Omnetics
15 μm · X3_H64 — 64-ch Molex
50 μm · X3_H64 — 64-ch Molex
15 μm · EIB64 — 64-ch Molex
50 μm · EIB64 — 64-ch Molex
15 μm · Z64 — 64-ch Hirose
50 μm · Z64 — 64-ch Hirose
Loading the compatible products…
14 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 8% of catalog designs
Sites 64 — higher than 92% of catalog designs and 90% of its familyTop 15% of catalog designs · largest in its family
Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 10 designs)Top 35% of catalog designs
Shank length 7.5 mm — higher than 65% of catalog designs and 57% of its familyTop 27% of catalog designs
Shank separation 0.3 mm — higher than 73% of catalog designs and 75% of its familyTop 35% of catalog designs
Maximum site depth 7.49 mm — higher than 65% of catalog designs and 57% of its familyTop 33% of catalog designs
Minimum site depth 6.4 mm — higher than 67% of catalog designs and 29% of its familyTop 25% of catalog designs · largest in its family
Span, x 1.01 mm — higher than 75% of catalog designs and 100% of its family (the largest in its family, 10 designs)Top 44% of catalog designs
Span, y 1.09 mm — higher than 56% of catalog designs and 70% of its familyTop 95% of catalog designs
Site pitch, x 0.012 µm — higher than 5% of catalog designs and 40% of its familyTop 84% of catalog designs
Site pitch, y 0.018 µm — higher than 16% of catalog designs and 50% of its familyTop 17% of catalog designs
Site outline area 1.11 mm² — higher than 83% of catalog designs and 90% of its familyTop 21% of catalog designs
Neural interface volume 1.2 mm³ — higher than 79% of catalog designs and 70% of its familyTop 78% of catalog designs
Site coverage density 57.86 sites/mm² — higher than 22% of catalog designs and 60% of its familyTop 40% of catalog designs
Brain coverage density 53.15 sites/mm³ — higher than 60% of catalog designs and 70% of its family5 notes · Shank pitch has to match the anatomy · The larger sites are deliberate · Geometry …
