Electrode Arrays

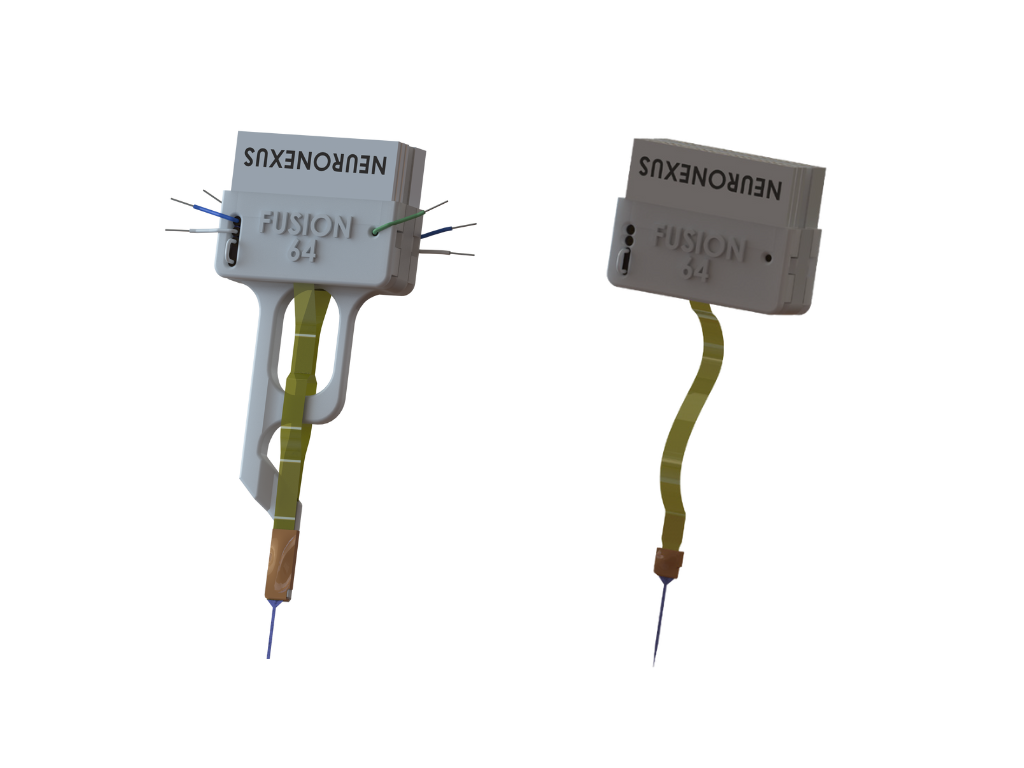

Fusion Probe

The NeuroNexus Fusion Probe delivers unbiased, full-field neural capture with double-sided recording – providing twice the active sites in nearly the same footprint. With enhanced spatial coverage and richer data from every insertion, Fusion helps you map microcircuits more efficiently and reduce animal use; all while fitting seamlessly into your existing workflow.

Operators

Enhanced 360° coverage – Fusion’s double-sided shank records front and back across depths and layers, giving you an unbiased, full-field view of local microcircuit dynamics with a single insertion.

Twice the active sitesDual faces deliver neuronal yield (fields and spikes) in nearly the same footprint – no new headstage, cables, or software workflow required.

Richer data, fewer animalsDenser datasets per experiment strengthen statistics while cutting cohort size and surgical time.

Fits every analysis workflow – Choose baseline site layouts for precise, sparse spatial coverage or high-density site layouts for precise, high-resolution coverage – fusion data drops straight into your existing pipeline.

Custom options – Pick from 100+ proven probe geometries or request your custom design, including different site layouts on each face.

Trusted Vendor – Based on NeuroNexus’s ability to deliver innovative solutions that work, proven by 5,000+ publications over 20+ years. One point of contact, one warranty.



Electrode Site Material

Iridium (standard), Z-Coat (custom)

Electrode Thickness

30 µm or 100 µm (varies by design)

Electrode Length

3-10 mm (varies by design, contact us for special needs)

Channel Count

32, 64, 128, 256 (varies by design)

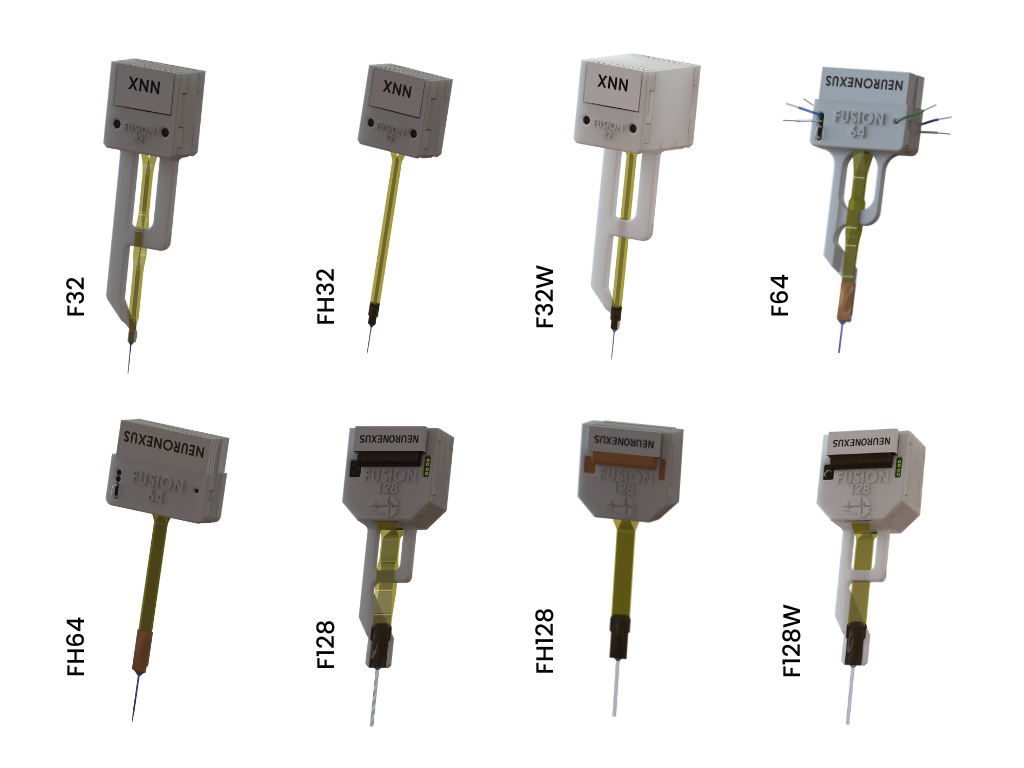

Each probe consists of two parts: an electrode array and a package. You must specify both to place an order.

  • First, using our electrode array design catalog, select an electrode array design that meets your experimental needs. Consider how the array design matches your target depth and shape, and if you require a particular site layout(e.g. tetrode or polytrode for cell discrimination, linear for laminar coverage).
  • Secondly, select a probe package that matches your headstage and/or recording system.
A1x16-3mm-100-177
A1x16-3mm-100-703
A1x16-3mm-25-177
A1x16-3mm-50-177
A1x16-3mm-50-703
A1x16-5mm-100-177
A1x16-5mm-100-703
A1x16-5mm-150-177
A1x16-5mm-150-703
A1x16-5mm-25-177
A1x16-5mm-50-177
A1x16-5mm-50-703
A1x16-6mm-100-177
A1x16-10mm-100-177
A1x16-10mm-100-703
a2x2-tet-3mm-150-150-121
A1x16-10mm-200-177
A1x16-10mm-25-177
a4x1-tet-3mm-150-121
a4x1-tet-3mm-250-121
a4x4-2mm-200-200-200
a4x4-3mm-100-125-177
a4x4-3mm-100-125-703
a4x4-3mm-200-200-177
a4x4-3mm-50-125-177
a4x4-4mm-200-200-1250
a4x4-5mm-100-125-703
a4x4-5mm-100-500-177
a1x16-poly2-5mm-50s-177
A1x32-3mm-50-703
A1x32-5mm-25-177
A1x32-5mm-50-177
A1x32-Poly2-5mm-50s-177
A1x32-Poly3-5mm-25s-177
A1x32-6mm-100-177
A1x32-6mm-100-703
A1x32-6mm-50-177
A1x32-6mm-50-703
A1x32-Poly3-6mm-50-177
A1x32-Poly5-6mm-35s-100
A1x32-Poly5-6mm-40s-225
A1x32-7mm-25-177
A1x32-Poly3-8mm-50s-177
A1x32-10mm-100-177
A1x32-10mm-100-703
A1x32-10mm-50-177
A1x32-10mm-50-703
A1x32-Poly2-10mm-50s-177
A1x32-Poly3-10mm-25s-177
A1x32-Poly3-10mm-50-177
a2x16-3mm-100-400-121
a2x16-5mm-70-200-177
a4x8-3mm-100-200-703
a4x8-3mm-50-200-177
a4x8-5mm-100-200-177
a4x8-5mm-100-200-703
a4x8-5mm-100-400-177
a4x8-5mm-100-400-703
a4x8-5mm-200-200-177
a4x8-5mm-200-200-703
a4x8-5mm-200-400-177
a4x8-5mm-200-400-703
a4x8-5mm-50-200-177
a4x8-5mm-50-200-703
a4x8-5mm-50-400-177
a4x8-5mm-50-400-703
a4x2-tet-5mm-150-200-121
a4x2-tet-5mm-500-400-121
A1x64-Poly2-6mm-23s-160
A2x32-5mm-25-200-177
A4x16-3mm-50-200-177
A4x16-Poly2-5mm-23s-200-177
A4x16-Poly3-5mm-20s-200-160
A4x4-tet-5mm-150-200-121
A4x16-6mm-50-200-177
A2x8-tet-5mm-130-350-121
