EEG 6-Channel Grid

6Sites
12µmThickness
4.5mmWidth
196,350µm²Site Area
Part no.Eeg-6-4000-cl50-500
Contents

6-site EEG grid

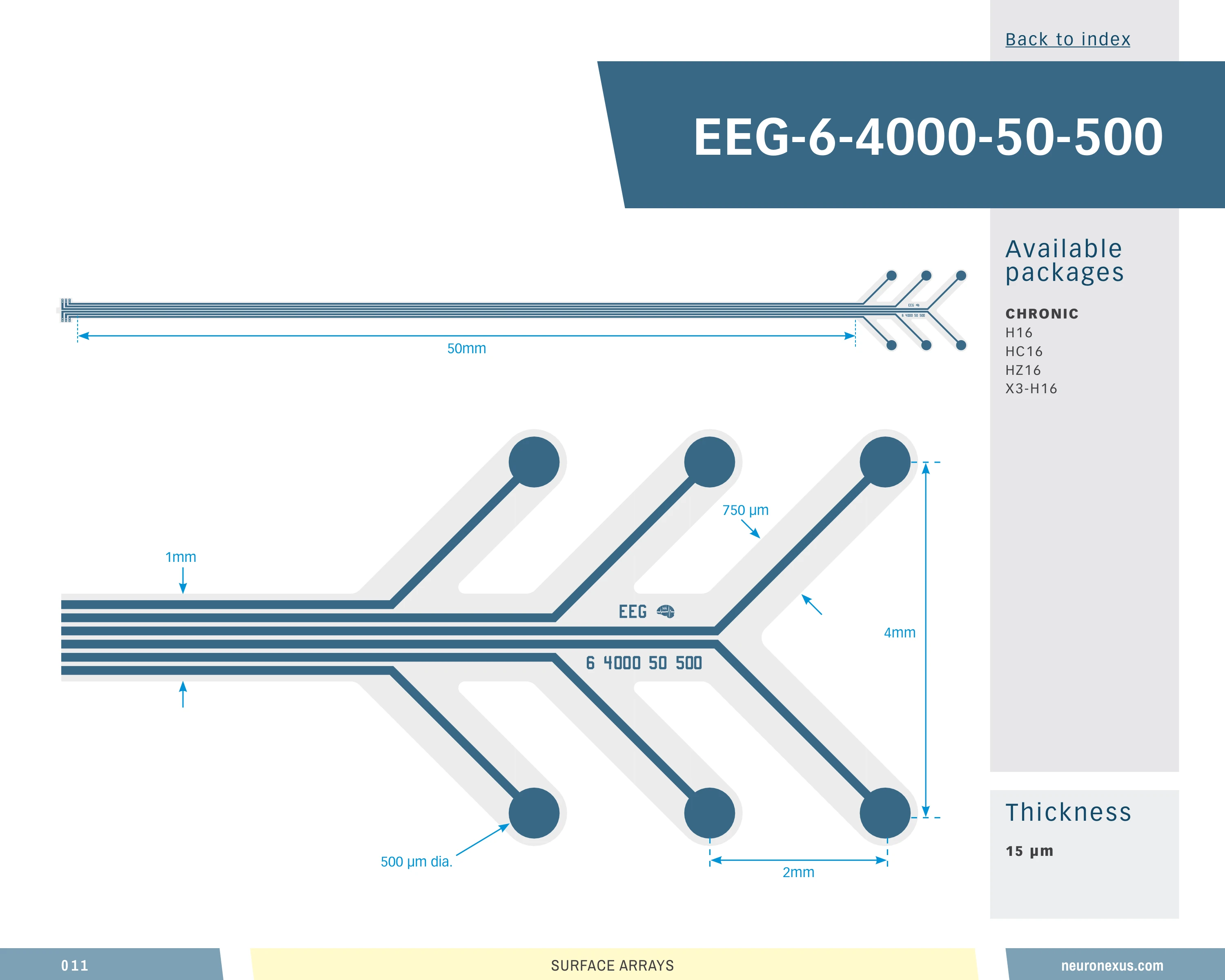

A thin polyimide film that sits on the outside of the skull, with no bone removed and no dura opened, carrying large sites that average a broad patch at low impedance, on a long cable for routing to the connector. Among the 55 grid designs in the design space it is mid-range: 6 sites (5th percentile), a 4.5 mm site-array span (45th percentile), 0.3 sites/mm² (24th percentile) and a 13 mm³ neural interface (45th percentile).

Orders as a grid-plus-package assembly, in 5 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 50 mm cable. Research use only.

Also known as

eeg_6_4000_50_500

EEG 6-Channel GridSKU grd_eeg--eeg_6_4000_cl50_500

10 specs

Channels6
Site layoutGrid
Site area196,350 µm²
Span4500 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm
Neural interface volume12.500 mm³ (higher than 45% of 55 designs)
Site coverage density0.3 sites/mm² (higher than 24% of 55 designs)
Brain coverage density0.5 sites/mm³ (higher than 20% of 55 designs)
EEG 6-Channel GridSKU grd_eeg--eeg_6_4000_cl50_500
