EEG 32-Channel Grid

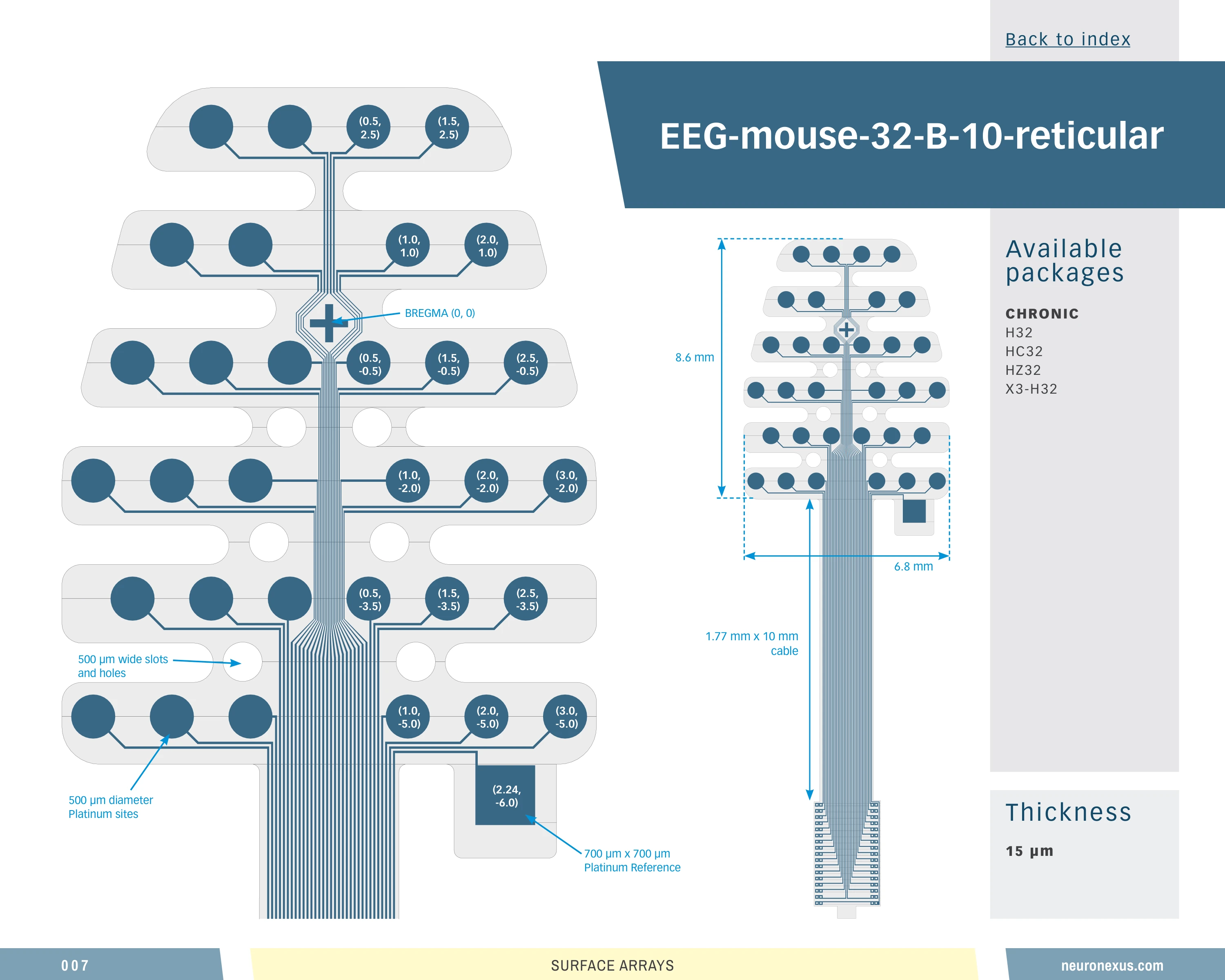

32-site EEG grid, 8 × 6.5 mm
A thin polyimide film that sits on the outside of the skull, with no bone removed and no dura opened, carrying large sites that average a broad patch at low impedance. Among the 55 grid designs in the design space it is mid-range: 32 sites (a common choice — 16 of 55), a 6.5 mm site-array span (53rd percentile), 0.62 sites/mm² (42nd percentile) and a 30 mm³ neural interface (58th percentile).
Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. Research use only.
eeg_mouse_32_b_10_reticular
10 specs
| Channels | 32 |
|---|---|
| Site layout | Grid |
| Site area | 196,350 µm² |
| Span | 6495 µm |
| Substrate | Polyimide |
| Site material | Platinum |
| Thickness | 12 µm |
| Neural interface volume | 29.711 mm³ (higher than 58% of 55 designs) |
| Site coverage density | 0.6 sites/mm² (higher than 42% of 55 designs) |
| Brain coverage density | 1.1 sites/mm³ (higher than 44% of 55 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
6 options
Configure
Your selection
32-channel thin-film EEG grid — H32, 12 μm
H32Options
6 of 6H32 — 32-ch Omnetics
HC32 — 32-ch Omnetics
MRH32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRHC32 — 32-ch Omnetics
X3_H32 — 32-ch Molex
Loading the compatible products…
9 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 33% of catalog designs · largest in its family
Sites 32 — higher than 67% of catalog designs and 100% of its family (the largest in its family, 9 designs)Top 33% of catalog designs
Span, x 7.99 mm — higher than 67% of catalog designs and 67% of its familyTop 47% of catalog designs
Span, y 6.5 mm — higher than 53% of catalog designs and 22% of its familyTop 21% of catalog designs
Site pitch, x 3 µm — higher than 79% of catalog designs and 89% of its familyTop 44% of catalog designs
Site pitch, y 1 µm — higher than 56% of catalog designs and 22% of its familyTop 42% of catalog designs
Site outline area 51.93 mm² — higher than 58% of catalog designs and 22% of its familyTop 42% of catalog designs
Neural interface volume 29.71 mm³ — higher than 58% of catalog designs and 22% of its familyTop 58% of catalog designs · largest in its family
Site coverage density 0.616 sites/mm² — higher than 42% of catalog designs and 100% of its family (the largest in its family, 9 designs)Top 56% of catalog designs · largest in its family
Brain coverage density 1.08 sites/mm³ — higher than 44% of catalog designs and 100% of its family (the largest in its family, 9 designs)5 notes · What removing the craniotomy changes · Where the difficulty moves: alignment and fixation · Coverage and site layout …
