EEG 30-Channel Grid

30Sites
12µmThickness
6.935mmWidth
196,350µm²Site Area
Part no.Eeg-m-30-a-cl8
Contents

30-site EEG grid, 8 mm cable

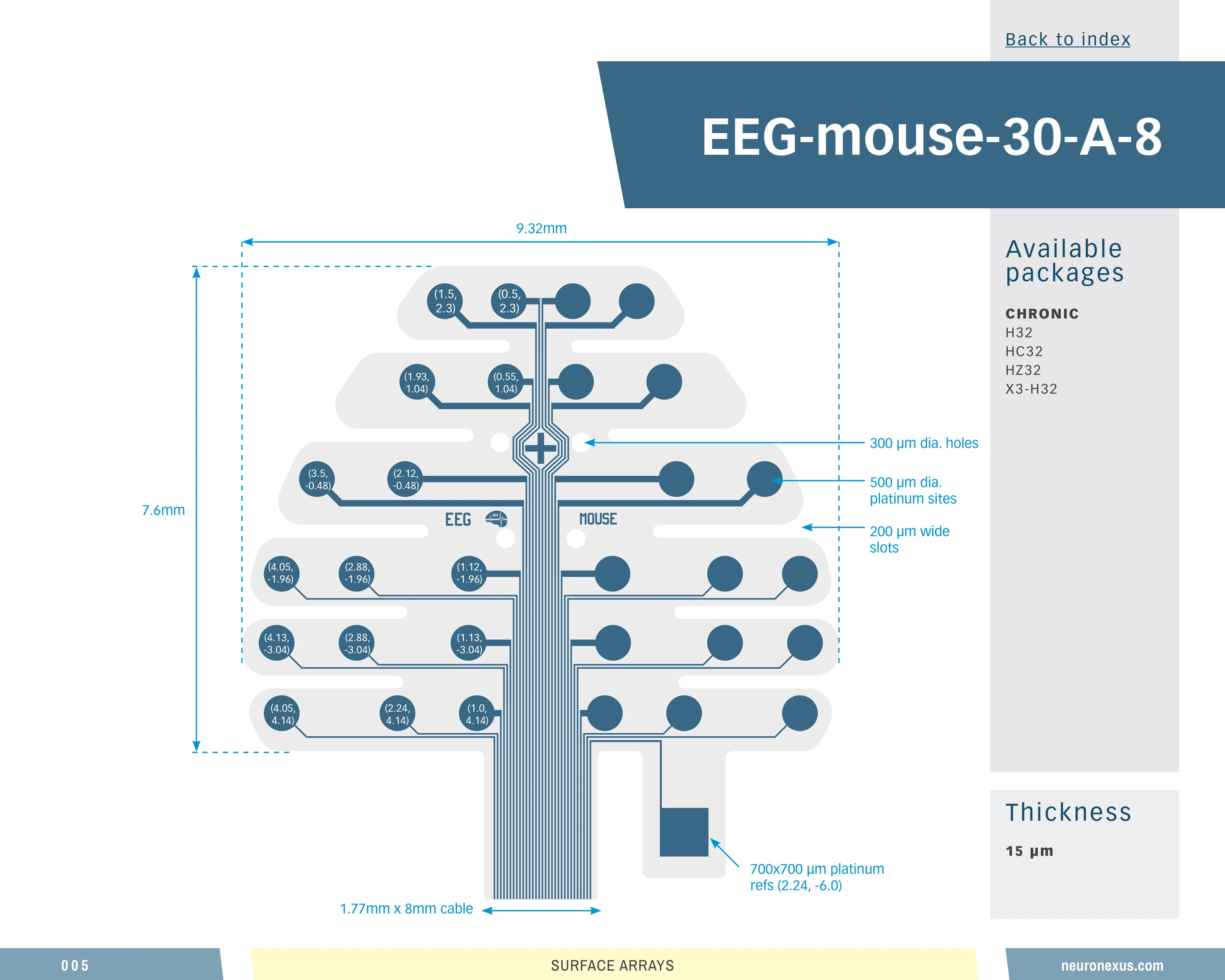

A thin polyimide film that sits on the outside of the skull, with no bone removed and no dura opened, carrying large sites that average a broad patch at low impedance, on a short cable for a compact head end. Among the 55 grid designs in the design space it is mid-range: 30 sites (38th percentile), a 8.76 mm site-array span (69th percentile), 0.49 sites/mm² (40th percentile) and a 34 mm³ neural interface (65th percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 8 mm cable. Research use only.

Also known as

eeg_mouse_30_a_8

EEG 30-Channel GridSKU grd_eeg--eeg_m_30_a_cl8

10 specs

Channels30
Site layoutGrid
Site area196,350 µm²
Span8757 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm
Neural interface volume34.412 mm³ (higher than 65% of 55 designs)
Site coverage density0.5 sites/mm² (higher than 40% of 55 designs)
Brain coverage density0.9 sites/mm³ (higher than 42% of 55 designs)
EEG 30-Channel GridSKU grd_eeg--eeg_m_30_a_cl8
