Grids · EEG Series

EEG 32-Channel Grid

32Sites
12µmThickness
10.49mmWidth
196,350µm²Site Area
Part no.Eeg-r-32-b-cl10-tri
Contents

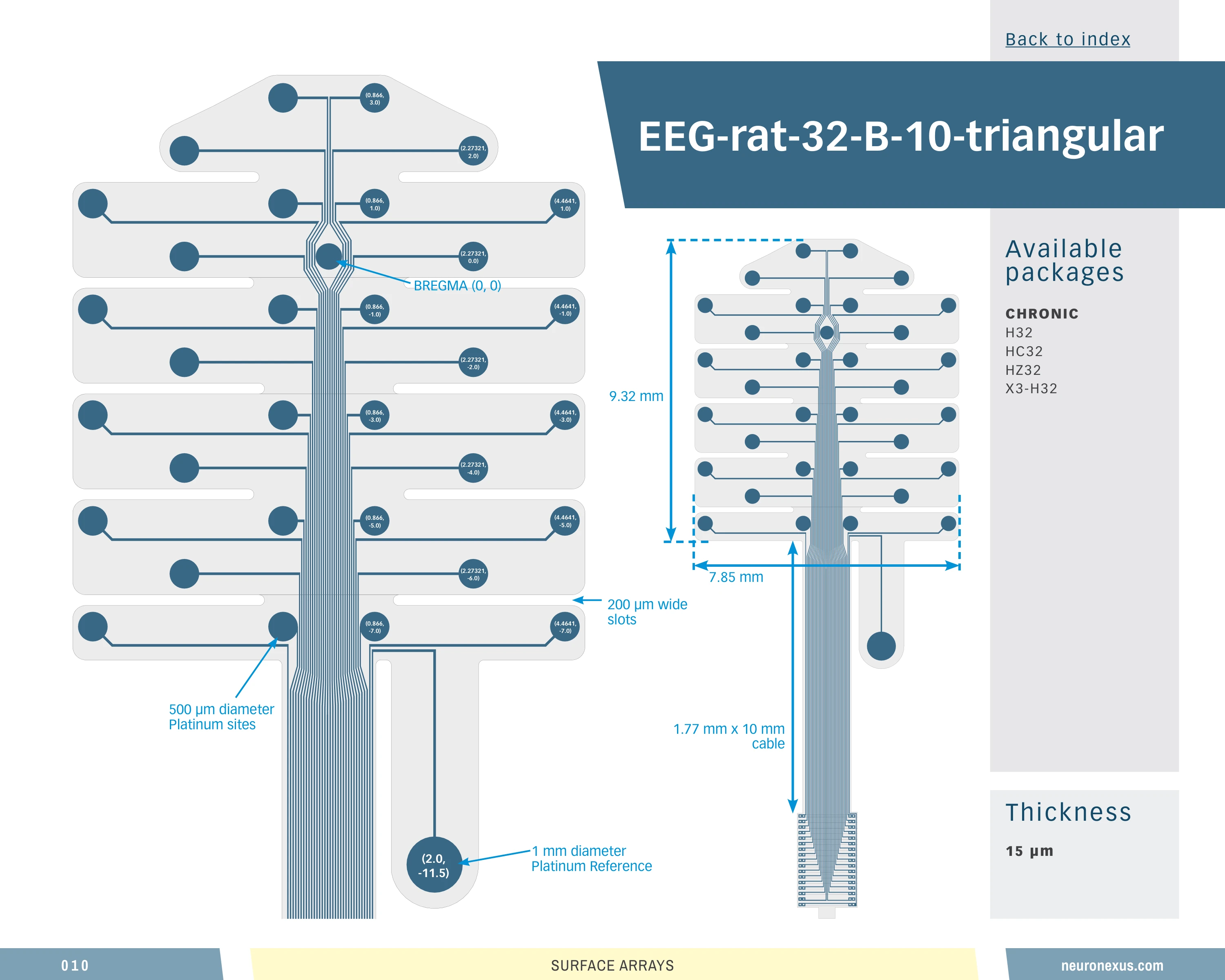

32-site EEG grid, 10.5 × 9.4 mm

A thin polyimide film that sits on the outside of the skull, with no bone removed and no dura opened, carrying large sites that average a broad patch at low impedance. Among the 55 grid designs in the design space it is mid-range: 32 sites (a common choice — 16 of 55), a 9.43 mm site-array span (75th percentile), 0.32 sites/mm² (33rd percentile) and a 55 mm³ neural interface (75th percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. Research use only.

Also known as

eeg_rat_32_b_10_triangular

EEG 32-Channel GridSKU grd_eeg--eeg_r_32_b_cl10_tri

10 specs

Channels32
Site layoutGrid
Site area196,350 µm²
Span9425 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm
Neural interface volume54.562 mm³ (higher than 75% of 55 designs)
Site coverage density0.3 sites/mm² (higher than 33% of 55 designs)
Brain coverage density0.6 sites/mm³ (higher than 33% of 55 designs)
EEG 32-Channel GridSKU grd_eeg--eeg_r_32_b_cl10_tri

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

6 options

Configure

Compatible Package
All
H32 — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
X3_H32 — 32-ch Molex

Your selection

32-channel thin-film EEG grid — 12 μm, H32
H32
Compatible Package: H32 — 32-ch Omnetics
SKUgrd_eeg--eeg_r_32_b_cl10_tri.12um.h32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

6 of 6
EEG 32-Channel GridSKU grd_eeg--eeg_r_32_b_cl10_tri

Loading the compatible products…

EEG 32-Channel GridSKU grd_eeg--eeg_r_32_b_cl10_tri

9 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
3256

Top 33% of catalog designs · largest in its family

Sites 32 — higher than 67% of catalog designs and 100% of its family (the largest in its family, 9 designs)
Span, x
10.49 mm
0.1 mm36.5 mm

Top 24% of catalog designs

Span, x 10.49 mm — higher than 76% of catalog designs and 78% of its family
Span, y
9.43 mm
0.26 mm79 mm

Top 25% of catalog designs · largest in its family

Span, y 9.43 mm — higher than 75% of catalog designs and 100% of its family (the largest in its family, 9 designs)
Site pitch, x
2 µm
0.15 µm6 µm

Top 25% of catalog designs

Site pitch, x 2 µm — higher than 75% of catalog designs and 78% of its family
Site pitch, y
3.6 µm
0.08 µm5.59 µm

Top 7% of catalog designs

Site pitch, y 3.6 µm — higher than 93% of catalog designs and 89% of its family
Site outline area
98.91 mm²
0.026 mm²970.7 mm²

Top 25% of catalog designs

Site outline area 98.91 mm² — higher than 75% of catalog designs and 89% of its family
Neural interface volume
54.56 mm³
0.228 mm³501.1 mm³

Top 25% of catalog designs

Neural interface volume 54.56 mm³ — higher than 75% of catalog designs and 89% of its family
Site coverage density
0.324 sites/mm²
0.066 sites/mm²134.5 sites/mm²

Top 67% of catalog designs

Site coverage density 0.324 sites/mm² — higher than 33% of catalog designs and 56% of its family
Brain coverage density
0.586 sites/mm³
0.128 sites/mm³61.01 sites/mm³

Top 67% of catalog designs

Brain coverage density 0.586 sites/mm³ — higher than 33% of catalog designs and 56% of its family
EEG 32-Channel GridSKU grd_eeg--eeg_r_32_b_cl10_tri

5 notes · What removing the craniotomy changes · Where the difficulty moves: alignment and fixation · Coverage and site layout …

EEG 32-Channel GridSKU grd_eeg--eeg_r_32_b_cl10_tri

18 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

EEG 32-Channel GridSKU grd_eeg--eeg_r_32_b_cl10_tri

Cited in 74 publications (product line)
